| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Sync | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Storage Temperature | |
| Synchronous Rectifier | |
| Tape & Reel | |
| Topology | |
| Voltage |
The MAX20048ATGB/VY+T is a versatile 40V Buck-Boost Controller manufactured by Analog Devices Inc. (also associated with Maxim Integrated). This component is designed for step-up and step-down voltage conversion, operating with an input voltage range of 2V to 40V.
It features a synchronous rectifier and operates at switching frequencies between 220kHz and 2.2MHz. The controller supports PWM output and has a single positive output configuration. Designed for demanding environments, it has an operating temperature range of -40°C to 125°C.

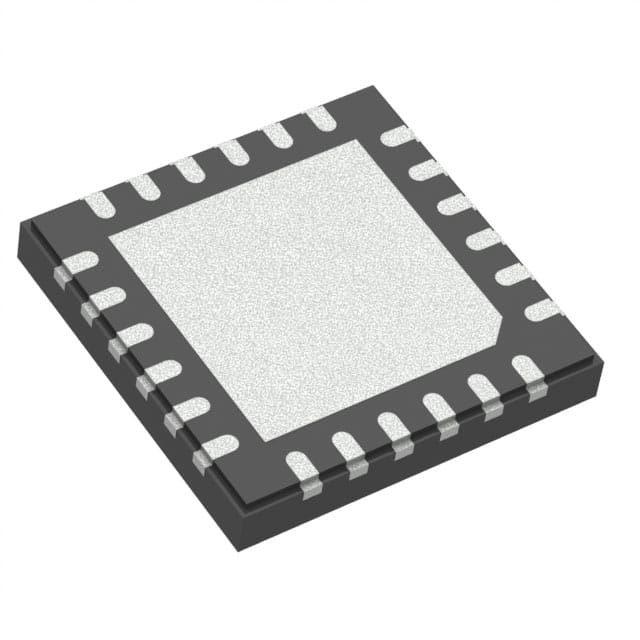

The device is housed in a 24-SWTQFN (4x4) package and is suitable for surface mount applications with wettable flank termination. It belongs to the Automotive, AEC-Q100 series, indicating its suitability for automotive applications.
Key electrical specifications include its buck-boost topology, clock synchronization capability, and a single output channel. The component is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.21 | $2.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2V to 40V.
The operating temperature range is -40°C to 125°C.
It uses a Buck-Boost Synchronous topology.
The package is a 24-SWTQFN (4x4).
Yes, it is RoHS3 Compliant.
