| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Gain | |
| Mounting Type | |
| Noise Figure | |
| Number of Mixers | |
| RF Type | |
| Secondary Attributes | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The MAX19999ETX+T is a single RF mixer designed for down-conversion applications. It supports frequencies from 3GHz to 4GHz and is suitable for LTE, WiMAX, and WLL systems.
This device operates with dual voltage supplies, ranging from 3V to 3.6V and 4.75V to 5.25V. It draws a current of 279mA or 420mA depending on the operating condition. Key electrical characteristics include a typical gain of 8.3dB and a noise figure of 10.5dB.

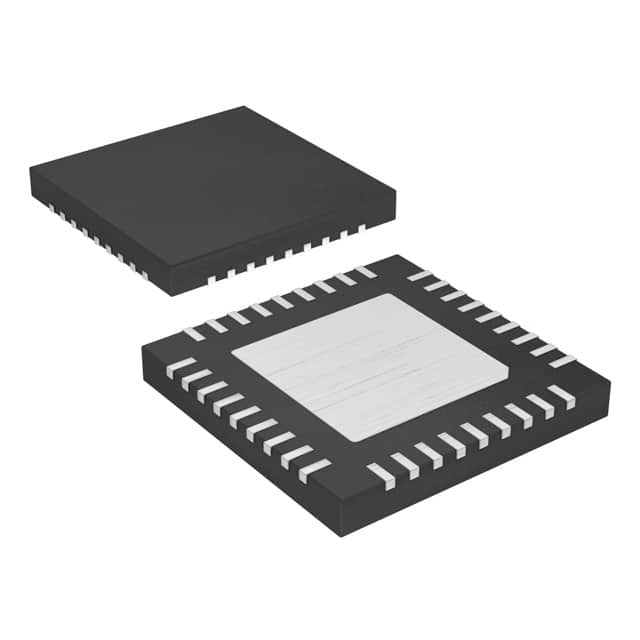

The MAX19999ETX+T is available in a 36-TQFN (6x6) package with an exposed pad, specifically a 36-WFQFN Exposed Pad configuration. It is designed for surface mount applications.
Environmental compliance includes RoHS3 compliance, a Moisture Sensitivity Level (MSL) of 1 Unlimited, and REACH Unaffected status. However, these compliance details are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3V to 3.6V and 4.75V to 5.25V.
The frequency range is 3GHz to 4GHz.
The typical gain is 8.3dB.
The noise figure is 10.5dB.
It is in a 36-WFQFN Exposed Pad package, also referred to as 36-TQFN (6x6).
It is a surface mount device.
