| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Configuration | |
| Data Interface | |
| Input Type | |
| Lead Spacing | |
| Mounting Type | |
| Number of A | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Ratio | |
| Reference Type | |
| Sampling Rate (Per Second) | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The MAX195BCPE is a 16-bit successive-approximation analog-to-digital converter (ADC) from Analog Devices. It offers high speed and accuracy with a sampling rate of 85kSPS and a conversion time of 9.4µs. The device supports a pin-selectable input range of unipolar (0V to VREF) or bipolar (-VREF to VREF) and operates with a voltage range of ±5V.
Key electrical specifications include 90dB SINAD and a low 10µA (max) shutdown mode. The internal calibration circuitry corrects linearity and offset errors, ensuring full-rated performance over the operating temperature range of 0°C to 70°C without external adjustments. The capacitive-DAC architecture provides an inherent track/hold function.

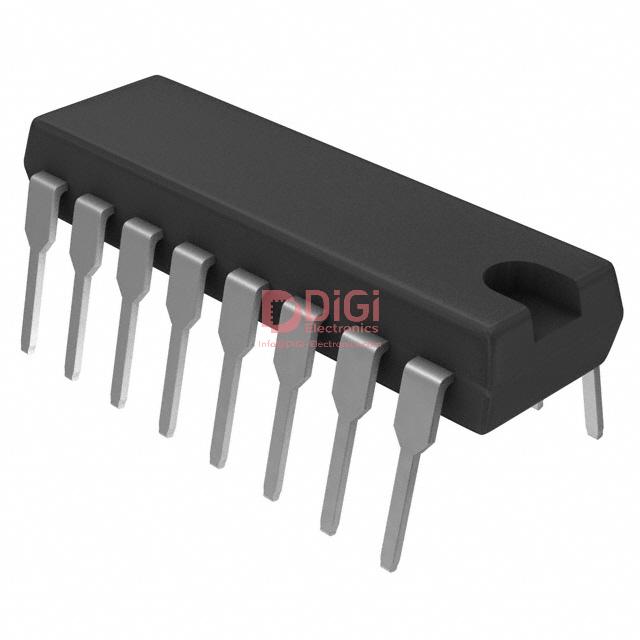

This ADC features a three-state serial-data output that can be read at up to 5Mbps using the serial clock (SCLK). The end-of-conversion (EOC) output can be used to interrupt a processor or enable continuous conversions. The MAX195BCPE is available in a 16-pin DIP package, suitable for through-hole mounting.
Applications for this ADC include portable instruments, audio processing, industrial controls, robotics, medical signal acquisition, and digital signal processing.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.35 | $8.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX195BCPE has a resolution of 16 bits.
The MAX195BCPE offers a sampling rate of 85kSPS.
The MAX195BCPE operates within a temperature range of 0°C to 70°C.
The MAX195BCPE is supplied in a 16-PDIP package.
The MAX195BCPE supports an input voltage range of ±5V.
The MAX195BCPE uses an SPI data interface.
