| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
699 pcs
|
699 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Duty Cycle | |
| Efficiency | |
| Input Voltage | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Quiescent Current | |
| Storage Temperature | |
| Tape & Reel |
The MAX1837EUT33+T is a high-efficiency step-down converter designed by Maxim Integrated (MAX) for low-power, space-sensitive applications. It operates from an input voltage range of 4.5V to 24V and provides a preset 3.3V output voltage, with the capability for adjustable output from 1.25V to VIN using external feedback resistors. This device can deliver load currents up to 250mA.
Key features include a low quiescent current of 12μA under light loads and a 100% maximum duty cycle, which minimizes dropout voltage to a typical 120mV at 100mA. High switching frequencies allow for the use of small surface-mount inductors and output capacitors, making it suitable for compact designs.

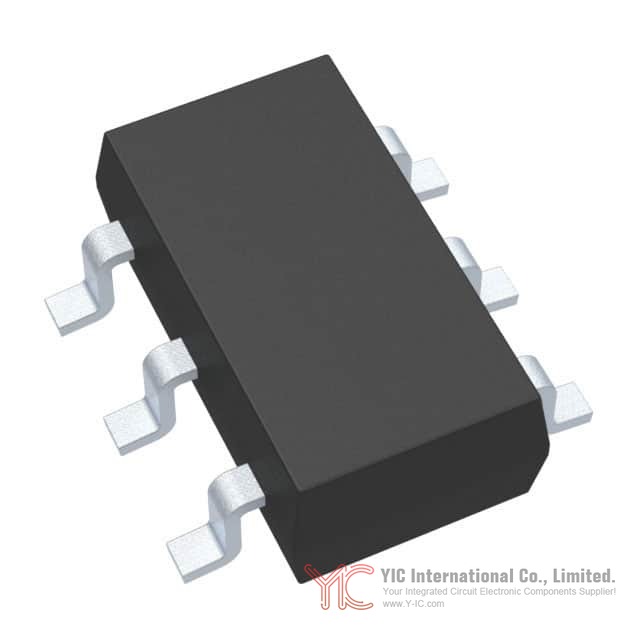

The MAX1837EUT33+T is available in a small 6-pin SOT23 package, ideal for applications such as 9V battery systems, notebook computers, distributed power systems, and handheld devices. Its efficiency is rated over 90%.
This converter is designed for applications requiring a stable, regulated voltage from a higher, potentially fluctuating input source. The compact package and low quiescent current make it an excellent choice for battery-powered and space-constrained electronic devices.
The input voltage range is 4.5V to 24V.
The MAX1837EUT33+T provides a preset 3.3V output voltage.
The maximum output current for the MAX1837EUT33+T is 250mA.
The quiescent current under light loads is typically 12μA.
The operating temperature range is -40°C to +85°C.
The MAX1837EUT33+T is available in a 6-pin SOT23 package.
