| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
51,657 pcs
|
51657 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Input Voltage | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Output Voltage | |
| Power Dissipation | |
| Protection Features | |
| SVHC Present | |
| Supplier Device Package | |
| Supply Current | |
| Voltage |
The MAX1806EUA08 is a low-dropout linear voltage regulator designed for portable equipment. It operates from a +2.25V to +5.5V supply and delivers a guaranteed 500mA load current with a low 175mV dropout voltage at full load.
The output voltage is adjustable from +0.8V to +4.5V using an external resistive divider, with a high accuracy of ±1%. Key features include an active-low power-OK output, a shutdown mode with very low current consumption, and built-in short-circuit and thermal shutdown protection.

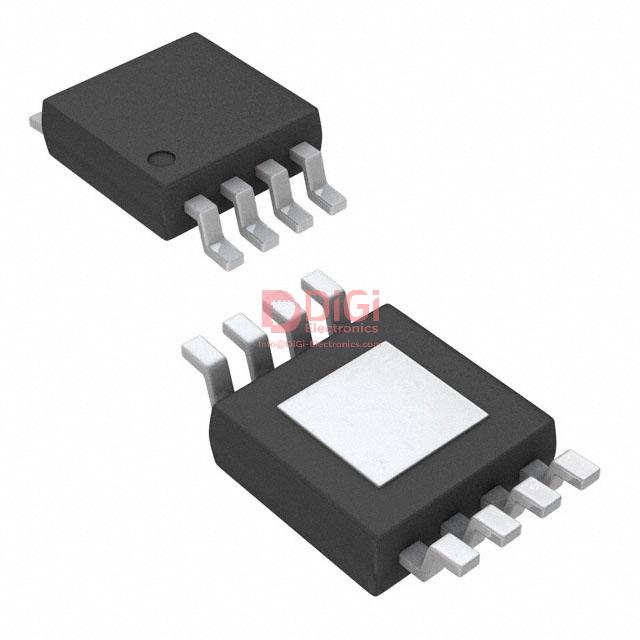

This device is ideal for applications such as cellular phones, PDAs, and docking stations. It comes in a miniature 8-pin Power-μMAX package suitable for surface mounting.
The regulator has a typical supply current of 210µA and a shutdown current of 0.02µA, making it power-efficient for battery-operated devices. The operating temperature range is -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.25V to 5.5V.
The output voltage is adjustable from 0.8V to 4.5V with ±1% accuracy.
The device is available in 8-uMAX-EP and 8-uSOP-EP packages with exposed pad.
-40°C to +85°C.
500mA.
175mV.
Over-current, over-temperature, and short-circuit protection.
