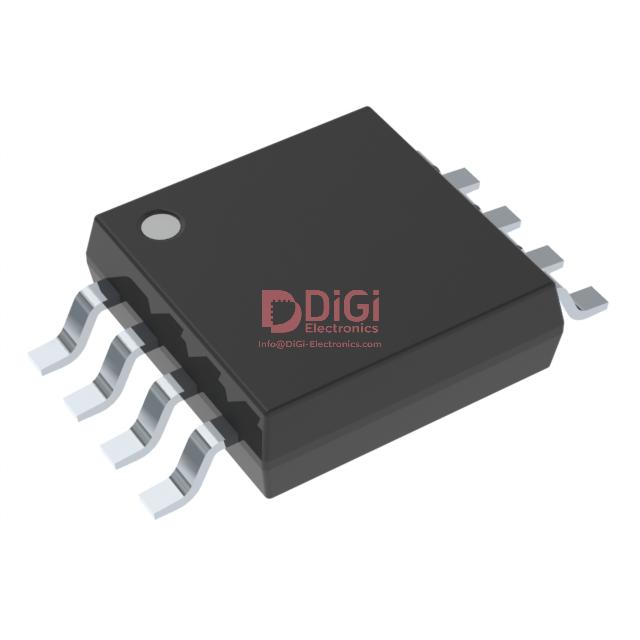

The MAX1797EUA is a high-efficiency, step-up DC-DC converter from Analog Devices Inc., suitable for small portable hand-held devices. It features Maxim's True Shutdown circuitry, which fully disconnects the output from the input in shutdown mode, improving efficiency and eliminating the need for an external Schottky diode. The device also includes LX-damping circuitry for reduced EMI.
The input voltage range is from +0.7V to VOUT, with VOUT adjustable from +2V to +5.5V. Startup is guaranteed from +0.85V. The MAX1797EUA has a current limit of 1A, allowing optimization for different loads. It operates with a quiescent supply current of 25μA and a shutdown current of 2μA.
This converter is packaged in a compact, 8-pin μMAX package, measuring only 1.09mm tall. It is designed for applications such as portable digital audio players, PDAs/palmtops, wireless handsets, and portable terminals.
The device operates within a temperature range of -40°C to +85°C. It is available in a surface-mount package, typically supplied in tubes.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 0.7V to 5.5V.
The output voltage can be adjusted from 2V to 5.5V.
The MAX1797EUA has a current limit of 1A.
The operating temperature range is -40°C to +85°C.
The MAX1797EUA is available in an 8-pin μMAX package.
The MAX1797EUA is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
