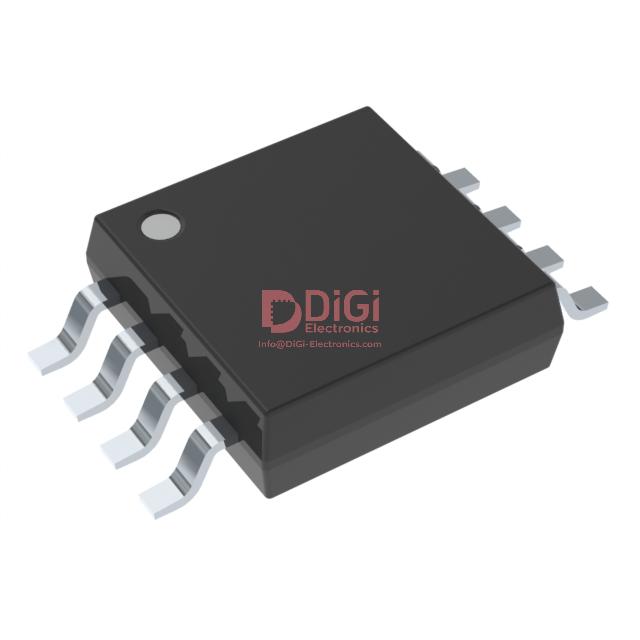

MAX1776EUA The MAX1776EUA is a high-efficiency step-down converter from Analog Devices / Maxim Integrated. It offers an adjustable output voltage and supports input voltages from 4.5V to 24V with an output current of up to 600mA.
Mfr Part #:

MAX1776EUA

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX1776EUA is a high-efficiency step-down converter from Analog Devices / Maxim Integrated. It offers an adjustable output voltage and supports input voltages from 4.5V to 24V with an output current of up to 600mA.
✓ Total Stock: 6,000 pcs
$ Price Range: $1.08

MAX1776EUA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX1776EUA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Duty Cycle
Efficiency
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Current
Output Type
Quiescent Current
SVHC Present
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

MAX1776EUA Description

Short technical summary and product information.

The MAX1776EUA is a high-efficiency step-down (buck) switching regulator IC designed for applications requiring adjustable output voltages from 1.25V up to the input voltage.



This device operates from a wide input voltage range of 4.5V to 24V and can deliver a continuous output current of up to 600mA. It features an internal 0.4 Ohm P-channel MOSFET and supports a 100% maximum duty cycle, which minimizes dropout voltage. The quiescent supply current is a low 15µA, improving light-load efficiency and conserving battery life, with a shutdown current of only 3µA.



With a high switching frequency of up to 200kHz, the MAX1776EUA allows for the use of small surface-mount inductors and capacitors, contributing to a compact design. It is available in an 8-pin µMAX package, which is significantly smaller than an 8-pin SO package.



Key features include adjustable or fixed 5V output, current-limited architecture, and thermal shutdown protection. Applications include notebook computers, distributed power systems, keep-alive supplies, and hand-held devices.

MAX1776EUA Quick Information

Product Type: DC-DC Switching Regulator
Canonical Name: MAX1776EUA Step-Down Converter
Subcategory: Voltage Regulators - DC DC Switching Regulators

MAX1776EUA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX1776EUA Estimated Pricing

Qty Low High
1+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX1776EUA Features

  • High-efficiency step-down converter.
  • Adjustable output voltage from 1.25V.
  • Up to 600mA output current.
  • Low 15µA quiescent supply current.
  • Compact 8-pin µMAX package.

MAX1776EUA Applications

  • Ideal for notebook computers.
  • Suitable for distributed power systems.
  • Used in keep-alive supplies.
  • Applicable to hand-held devices.

MAX1776EUA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the MAX1776EUA?

The input voltage range for the MAX1776EUA is 4.5V to 24V.

What is the maximum output current of the MAX1776EUA?

The MAX1776EUA can deliver a maximum output current of 600mA.

What is the quiescent current of the MAX1776EUA?

The MAX1776EUA has a quiescent supply current of 15µA.

What package type is the MAX1776EUA available in?

The MAX1776EUA is available in an 8-pin µMAX package.

What is the operating temperature range for the MAX1776EUA?

The operating temperature range for the MAX1776EUA is -40°C to 85°C.

What is the switching frequency of the MAX1776EUA?

The MAX1776EUA has a switching frequency of up to 200kHz.
