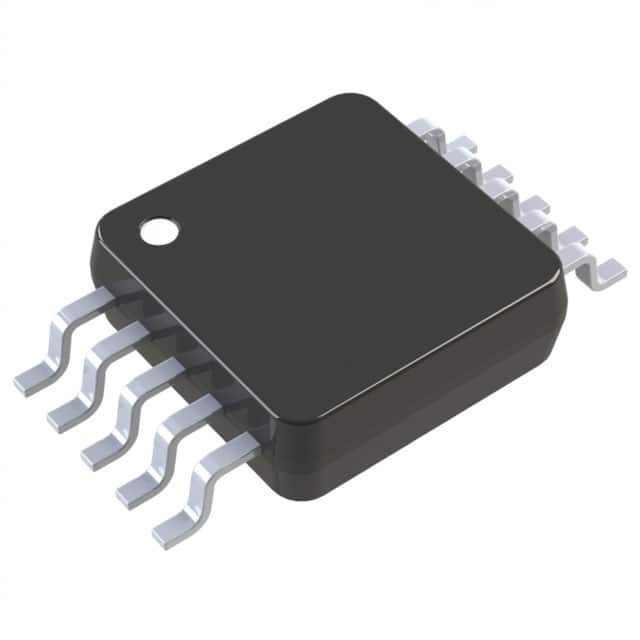

MAX1760EUB-T The Analog Devices MAX1760EUB-T is a DC-DC switching regulator. It offers adjustable or fixed output voltages from 2.5V to 5.5V with an input voltage range of 0.7V to 5.5V.
Mfr Part #:

MAX1760EUB-T

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices MAX1760EUB-T is a DC-DC switching regulator. It offers adjustable or fixed output voltages from 2.5V to 5.5V with an input voltage range of 0.7V to 5.5V.
✓ Total Stock: 1,158 pcs

MAX1760EUB-T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,158 pcs
On Request
1158 pcs On Request 1 On Request On Request 04+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX1760EUB-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Function
Lead Style
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Package / Case
SVHC Present
Synchronous Rectifier
Tape & Reel
Topology
View Similar Products (0)

MAX1760EUB-T Description

Short technical summary and product information.

The MAX1760EUB-T from Analog Devices Inc./Maxim Integrated is a DC-DC switching regulator designed for step-up (boost) applications. It supports an input voltage range from 0.7V to 5.5V and provides an adjustable or fixed output voltage between 2.5V and 5.5V.



This component features a synchronous rectifier and operates at a switching frequency of 1MHz. It can deliver an output current of up to 1A. The device is available in a 10-uMAX/uSOP package and is designed for surface mount installation.



With an operating temperature range of -40°C to 85°C, the MAX1760EUB-T is suitable for various applications requiring efficient voltage conversion. The package type is Tape & Reel (TR).

MAX1760EUB-T Quick Information

Product Type: DC DC Switching Regulator
Series: MAX1760
Canonical Name: MAX1760EUB-T Boost Voltage Regulator
Subcategory: DC-DC Switching Regulator

MAX1760EUB-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX1760EUB-T Features

  • Boost DC-DC switching regulator.
  • Input voltage 0.7V to 5.5V.
  • Output voltage 2.5V to 5.5V.
  • 1A output current capability.
  • Surface mount 10-TFSOP, 10-MSOP package.

MAX1760EUB-T Applications

  • Suitable for step-up voltage conversion.
  • Designed for portable electronic devices.
  • Power management in various circuits.
  • Applications requiring adjustable output voltage.

MAX1760EUB-T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the MAX1760EUB-T?

The input voltage range is 0.7V to 5.5V.

What is the output voltage range?

The output voltage is adjustable from 2.5V to 5.5V, with a fixed 3.3V option.

What is the switching frequency?

1 MHz.

What package does the MAX1760EUB-T use?

10-uMAX/uSOP (10-TFSOP, 10-MSOP, 3.00mm width).

What is the operating temperature range?

-40°C to +85°C.

Does it have synchronous rectification?

Yes, it includes a synchronous rectifier.

What is the output configuration?

Positive, adjustable (fixed 3.3V option).
