| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Supplier Device Package | |
| Tape & Reel |

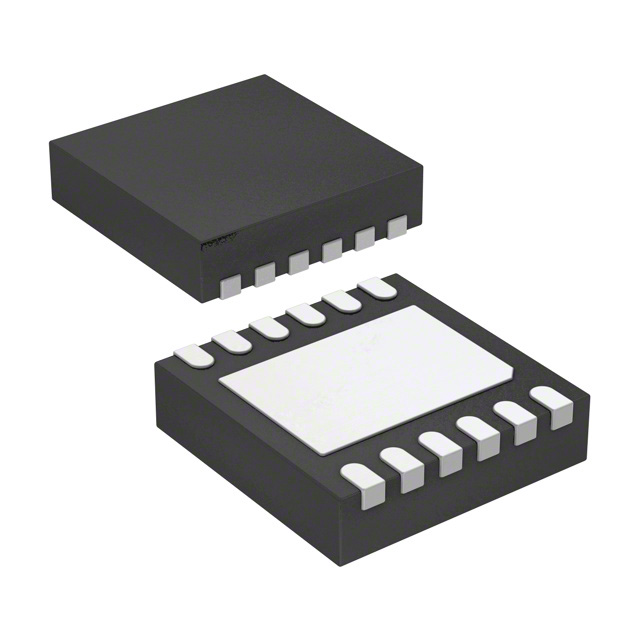

The MAX17608ATC+T, part of the Olympus series from Analog Devices Inc./Maxim Integrated, is an integrated system protection solution designed for robust performance. This device provides adjustable overvoltage and overcurrent protection, safeguarding systems against input voltage faults up to +60V and down to -65V.
Key electrical specifications include a wide input voltage range from 4.5V to 60V, a programmable current limit up to 1A with high accuracy (±3% to ±5%), and a low typical on-resistance of 260mΩ. The overvoltage and undervoltage lockout thresholds can be set using external resistors, with an internal undervoltage threshold at 4V.
Designed for industrial applications, the MAX17608ATC+T operates across an extended temperature range of -40°C to +125°C. It is available in a compact 12-pin, 3mm x 3mm TDFN-EP package, suitable for space-constrained designs. The device also features thermal shutdown protection and reverse current blocking.
Applications include sensor systems, condition monitoring, factory automation, process instrumentation, and battery-operated modules.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.34 | $1.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.5V to 60V.
Up to 1A.
-40°C to 125°C.
12-WFDFN Exposed Pad, supplier device package 12-TDFN (3x3).
Yes, adjustable input overvoltage protection from 5.5V to 60V.
260mΩ typical.
Yes, programmable current limit with ±5% accuracy for 0.1A-0.2A and ±3% for 0.2A-1.0A.
