| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
185 pcs
|
185 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Package / Case | |
| SVHC Present | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology |

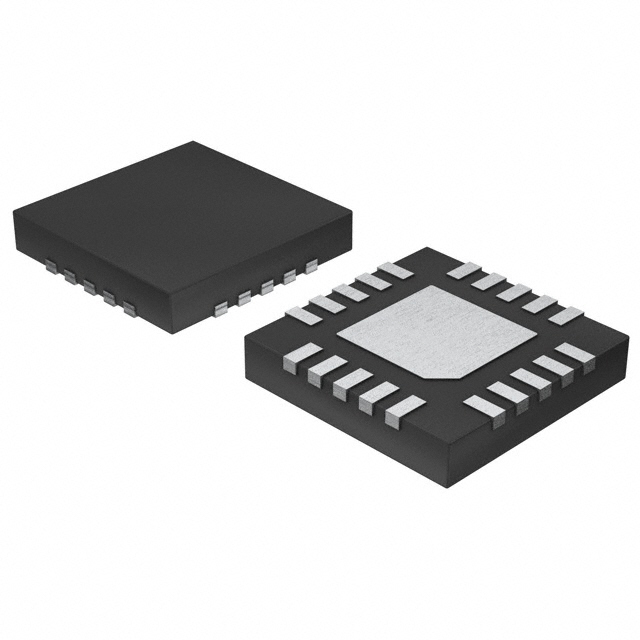

The MAX17544ATP+T is a high-performance Buck Switching Regulator IC manufactured by Analog Devices Inc./Maxim Integrated, part of the Himalaya series. This component is designed for step-down voltage regulation applications, offering an adjustable positive output voltage.
Key electrical specifications include a wide input voltage range from 4.5V to 42V and a maximum output current of 3.5A. The switching frequency can be adjusted from 100kHz up to 2.2MHz, allowing for flexibility in design. It also features a synchronous rectifier for improved efficiency.
This IC is housed in a 20-WQFN Exposed Pad package and is designed for surface mount applications. The operating temperature range is -40°C to 125°C (TJ), making it suitable for various environmental conditions. The device is RoHS3 Compliant and has an MSL rating of 1.
With its robust specifications, the MAX17544ATP+T is well-suited for power management in a variety of electronic systems requiring efficient and reliable DC-DC conversion.
-40°C to 125°C (TJ).
20-WQFN Exposed Pad (20-TQFN 5x5).
4.5V to 42V.
3.5A.
100kHz to 2.2MHz.
Yes, the output voltage is adjustable from 0.9V to 37.8V.
Yes, it features a synchronous rectifier.
