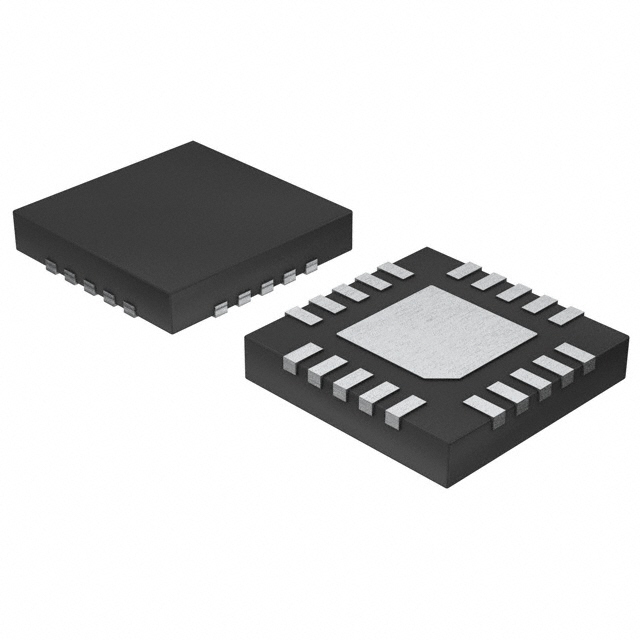

MAX17505ATP The MAX17505ATP is a high-efficiency, high-voltage, synchronous step-down converter from Analog Devices. It operates over a wide 4.5V to 60V input range and delivers up to 1.7A output current.
Mfr Part #:

MAX17505ATP

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX17505ATP is a high-efficiency, high-voltage, synchronous step-down converter from Analog Devices. It operates over a wide 4.5V to 60V input range and delivers up to 1.7A output current.
✓ Total Stock: 9,022 pcs
$ Price Range: $1.08

MAX17505ATP Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
5,022 pcs
On Request
5022 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX17505ATP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Voltage
Mounting Type
Operating Temperature
Output Current
Output Voltage
SVHC Present
Supplier Device Package
View Similar Products (0)

MAX17505ATP Description

Short technical summary and product information.

The MAX17505ATP is a high-efficiency, high-voltage synchronous step-down converter designed for industrial power supplies and distributed power regulation. It operates from a wide 4.5V to 60V input voltage range, providing an adjustable output voltage from 0.9V up to 90% of the input voltage. This device can deliver a continuous output current of up to 1.7A.



Featuring peak-current-mode control, the MAX17505ATP offers flexible operation modes including PWM, PFM, and DCM, allowing for high efficiency across various load conditions. It includes built-in compensation, eliminating the need for external components and reducing solution size and cost. The device supports programmable soft-start to manage inrush current and an EN/UVLO pin for user-defined turn-on thresholds.



The MAX17505ATP is available in a compact 4mm x 4mm, 20-pin TQFN package with an exposed pad, suitable for surface mounting. Its operating temperature range is -40°C to +125°C (junction temperature), making it suitable for demanding industrial applications.

MAX17505ATP Quick Information

Product Type: DC DC Switching Regulator
Canonical Name: MAX17505ATP High-Voltage Step-Down Converter
Subcategory: PMIC - Voltage Regulators

MAX17505ATP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX17505ATP Estimated Pricing

Qty Low High
1+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX17505ATP Features

  • High-efficiency synchronous step-down converter.
  • Wide 4.5V to 60V input voltage range.
  • Delivers up to 1.7A output current.
  • Adjustable output voltage from 0.9V.
  • Compact 4mm x 4mm TQFN package.

MAX17505ATP Applications

  • Industrial power supplies.
  • Distributed supply regulation.
  • Base station power supplies.
  • High-voltage single-board systems.

MAX17505ATP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the MAX17505ATP?

The input voltage range is 4.5V to 60V.

What is the maximum output current of the MAX17505ATP?

The MAX17505ATP can deliver up to 1.7A of output current.

What is the adjustable output voltage range for the MAX17505ATP?

The output voltage is adjustable from 0.9V to 90% of the input voltage.

What is the operating temperature range of the MAX17505ATP?

The operating temperature range is -40°C to +125°C for the junction temperature.

What package is the MAX17505ATP available in?

The MAX17505ATP is available in a 20-WFQFN Exposed Pad package, also referred to as 20-TQFN (4x4).

What is the RoHS status of the MAX17505ATP?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the MAX17505ATP?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
