| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,032 pcs
|
19032 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Supplier Device Package |
The MAX17503ATP from Analog Devices is a high-voltage, synchronously rectified step-down converter designed for efficient power supply solutions. It operates over a wide input voltage range of 4.5V to 60V and can deliver up to 2.5A of output current. The output voltage is adjustable from 0.9V up to 90% of the input voltage, with a maximum of 54V.
This device features internal compensation, eliminating the need for external components and simplifying design. It offers adjustable switching frequencies from 100kHz to 2.2MHz, with options for PWM, PFM, and DCM control modes to optimize efficiency across different load conditions. The operating temperature range is -40°C to 125°C.

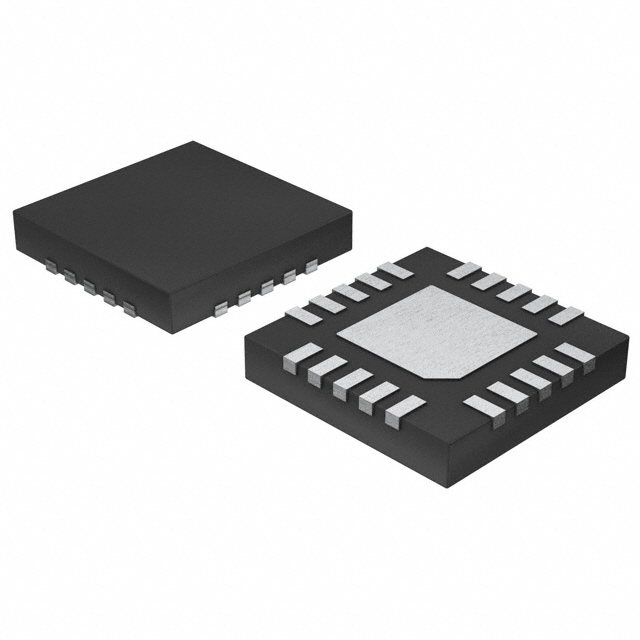

The MAX17503ATP is available in a compact 4mm x 4mm TQFN-EP package, suitable for surface mount applications. Its design includes features like programmable soft-start, output enable/undervoltage lockout, and a RESET pin for power-good signaling, making it suitable for industrial power supplies, distributed supply regulation, and base station power supplies.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 60V.
The maximum output current is 2.5A.
The output voltage is adjustable from 0.9V to 54V.
The operating temperature range is -40°C to 125°C.
The package is a 20-WFQFN Exposed Pad, with a supplier device package of 20-TQFN (4x4).
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
