| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,908 pcs
|
13908 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage |
The MAX17411GTM+T is a dual-output, step-down, constant on-time Quick-PWM controller from Analog Devices, specifically designed for VR12/IMVP-7 CPU core supplies. This controller integrates two high-current switching power supplies for CPU and GFX cores.
Key electrical specifications include a programmable switching frequency ranging from 200kHz to 600kHz per phase, and an output voltage accuracy of ±0.5% over line, load, and temperature. The device supports operating voltages between 0.25V and 1.52V.

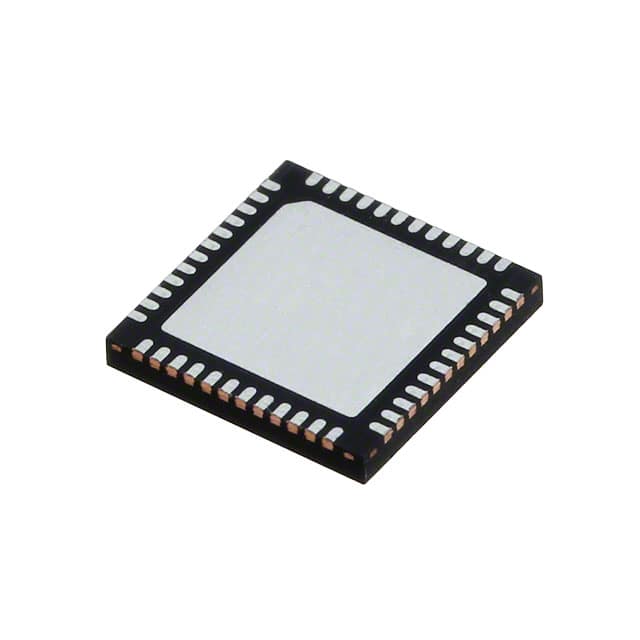

Packaged in a 48-TQFN (6x6) with an exposed pad, the MAX17411GTM+T is designed for surface mount applications. It operates within a temperature range of -40°C to 105°C. The controller includes features such as output overvoltage protection (OVP), undervoltage protection (UVP), and thermal protection, ensuring reliable operation by shutting down both outputs upon detecting a fault.
This component is suitable for applications in notebooks, desktops, and servers requiring robust CPU core power supplies compliant with Intel VR12/IMVP-7 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 0.25V to 1.52V.
The operating temperature range is -40°C to 105°C.
It is supplied in a 48-WFQFN Exposed Pad package.
The MAX17411GTM+T has 2 outputs.
The switching frequency is programmable from 200kHz to 600kHz per phase.
The output voltage accuracy is ±0.5% over line, load, and temperature.
