| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36,160 pcs
|
36160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Efficiency | |
| Mounting Type | |
| Output Current |
The MAX1722EZK is a compact, high-efficiency step-up DC-DC converter designed for applications where low quiescent current and small size are critical. It operates from one to two alkaline or NiMH cells, or a single Li+ cell.
Key electrical specifications include an extremely low 1.5µA quiescent supply current, up to 90% efficiency, and an output voltage accuracy of ±1%. The device supports an input voltage range of 0.8V to 5.5V and can deliver up to 150mA of output current. It also features a guaranteed startup voltage of 0.91V for the MAX1722/MAX1724 models.

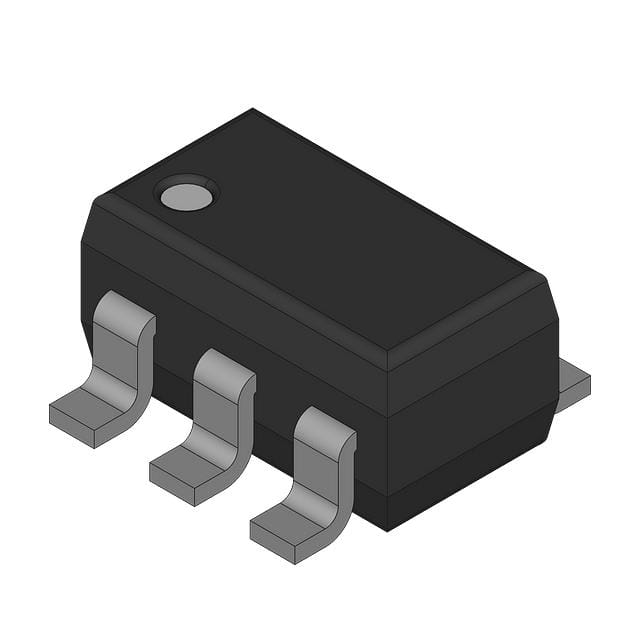

This converter utilizes built-in synchronous rectification, eliminating the need for an external Schottky diode and improving efficiency. The MAX1722 and MAX1724 models include proprietary noise-reduction circuitry to suppress electromagnetic interference (EMI). The device is available in a tiny, 5-pin thin SOT23 package with a maximum height of 1.1mm, making it ideal for space-constrained designs.
Applications for the MAX1722EZK include pagers, remote controls, remote wireless transmitters, personal medical devices, digital still cameras, single-cell battery-powered devices, low-power hand-held instruments, MP3 players, and personal digital assistants (PDAs).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 0.8V to 5.5V.
The maximum output current is 150mA.
The typical quiescent supply current is 1.5µA under light-load conditions.
The MAX1722EZK is available in a SOT23-5 package.
The efficiency is up to 90%.
