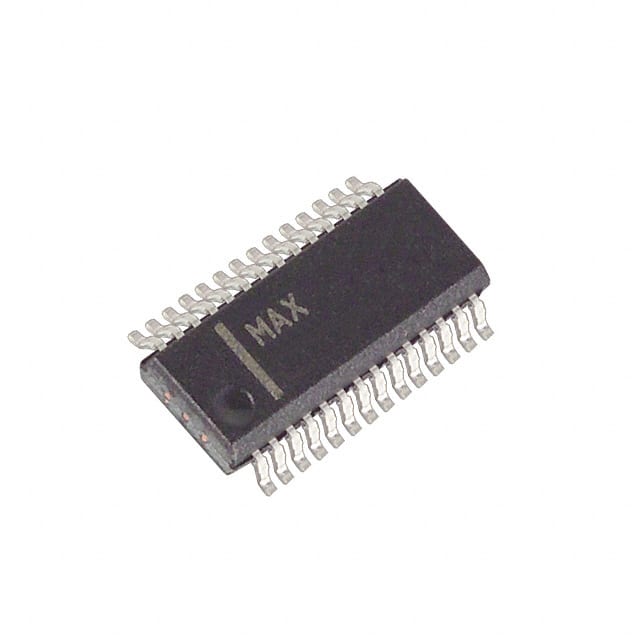

MAX1718EEI The MAX1718EEI is a step-down controller from Analog Devices / Maxim Integrated designed for notebook CPU core DC-DC converters. It offers a wide output voltage range and operates across a broad temperature spectrum.
Mfr Part #:

MAX1718EEI

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX1718EEI is a step-down controller from Analog Devices / Maxim Integrated designed for notebook CPU core DC-DC converters. It offers a wide output voltage range and operates across a broad temperature spectrum.
✓ Total Stock: 953 pcs
$ Price Range: $0.75

MAX1718EEI Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
487 pcs
On Request
487 pcs On Request 1 On Request On Request 0202+ On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
466 pcs
On Request
466 pcs On Request 1 On Request On Request 02/03+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX1718EEI Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Mounting Type
Number of Outputs
Operating Temperature
SVHC Present
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

MAX1718EEI Description

Short technical summary and product information.

The MAX1718EEI is a specialized step-down controller IC from Analog Devices / Maxim Integrated, engineered for core CPU DC-DC converters in notebook computers. It utilizes Maxim's proprietary Quick-PWM architecture for fast transient response and high efficiency.



The device supports a dynamically adjustable output voltage ranging from 0.6V to 1.75V, controlled via a 5-bit DAC with input multiplexers for different operating modes like Performance, Battery, and Suspend. It features precision slew-rate control for minimized surge currents and supports voltage-positioned applications.



With a 2V to 28V battery input range and a 1-output configuration, the MAX1718EEI is suitable for 2-cell to 4-cell Li+ battery applications. It is supplied in a compact 28-QSOP package and operates within an ambient temperature range of -40°C to 85°C, making it ideal for space-constrained portable designs.



This controller is designed for Intel IMVP-II compliant systems, ensuring compatibility with leading-edge CPU power supply requirements. Its robust design and features contribute to efficient power delivery and overall system reliability in demanding mobile computing environments.

MAX1718EEI Quick Information

Product Type: Step-Down Controller
Canonical Name: MAX1718EEI Notebook CPU Step-Down Controller
Subcategory: Special Purpose Regulators

MAX1718EEI Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX1718EEI Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX1718EEI Features

  • Step-down controller for notebook CPU core power.
  • Dynamically adjustable output voltage range.
  • Fast transient response with Quick-PWM.
  • Operates from -40°C to 85°C.
  • Surface mount 28-QSOP package.

MAX1718EEI Applications

  • Notebook CPU core DC-DC converters.
  • Intel IMVP-II compliant systems.
  • 2-cell to 4-cell Li+ battery applications.
  • 5V to CPU core supply converters.

MAX1718EEI FAQs

5 frequently asked questions generated from this part’s specifications.
What is the output voltage range for the MAX1718EEI?

The output voltage can be adjusted from 0.6V to 1.75V.

What is the operating temperature range of the MAX1718EEI?

The MAX1718EEI operates between -40°C and 85°C.

What package type is the MAX1718EEI supplied in?

The MAX1718EEI is supplied in a 28-QSOP package.

What are the primary applications for the MAX1718EEI?

The MAX1718EEI is used as a controller for Intel IMVP-2™ systems.

How many outputs does the MAX1718EEI have?

The MAX1718EEI has one output.
