| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,343 pcs
|
4343 pcs | On Request | 1 | On Request | On Request | 548 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Duty Cycle | |
| Mounting Type | |
| Number of Outputs | |
| Operating Mode | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Package / Case | |
| Supply Voltage | |
| Synchronous Rectifier | |
| Topology |
The MAX1717EEG-T is a DC DC Switching Controller manufactured by Analog Devices Inc./Maxim Integrated. This component is designed for step-down applications and features a Buck topology with a synchronous rectifier. It operates within a supply voltage range of 4.5V to 5.5V and supports multiple switching frequencies including 200kHz, 300kHz, 550kHz, and 1MHz.
The controller offers a maximum duty cycle of 100% and includes control features such as Current Limit, Enable, On Time Control, and Slew Control. It is not designed for clock synchronization. The device operates in a temperature range of -40°C to 85°C (TA).

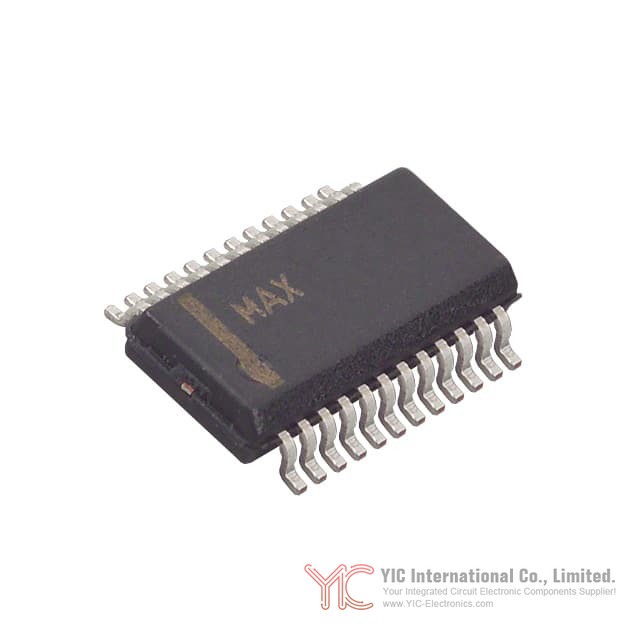

Packaged in a 24-QSOP or 24-SSOP (0.154", 3.90mm Width) surface mount configuration, the MAX1717EEG-T is supplied on tape and reel. Its RoHS status is compliant, and it has a Moisture Sensitivity Level (MSL) of 1.
This controller is suitable for various power management applications requiring efficient voltage regulation. Its robust features and operating parameters make it a reliable choice for designs needing a step-down DC DC conversion.
4.5V to 5.5V.
Available in 24-QSOP and 24-SSOP packages.
-40°C to 85°C.
Buck (step-down).
Selectable 200kHz, 300kHz, 550kHz, or 1MHz.
Yes.
100%.
