| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
69 pcs
|
69 pcs | On Request | 1 | On Request | On Request | 2001 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Configuration | |
| Data Interface | |
| Input Type | |
| Mounting Type | |
| Number of A | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Ratio | |
| Reference Type | |
| Sampling Rate (Per Second) | |
| Supplier Device Package | |
| Supply Voltage | |
| Voltage |

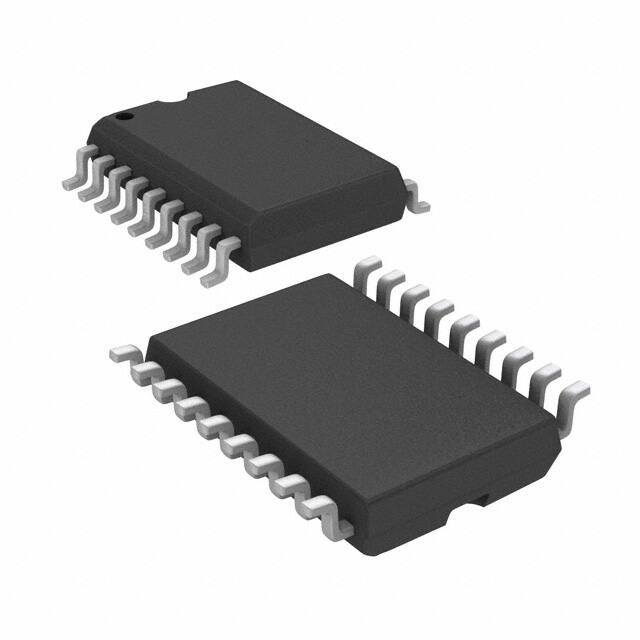

The MAX165ACWN from Analog Devices is an 8-bit successive approximation Analog to Digital Converter (ADC). It operates with a supply voltage of 5V and offers a sampling rate of up to 200kSPS.
This ADC features a parallel data interface and supports both external and internal reference types. The input type is single-ended, and it is configured as an S/H-ADC. The device is designed for surface mount applications and comes in an 18-SOIC package.
Key electrical specifications include an 8-bit resolution, a 5V analog supply voltage, and a maximum supply current of 6mA. The operating temperature range is from 0°C to 70°C. The part is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
This component is suitable for various data acquisition applications where an 8-bit resolution and moderate sampling rate are required. Its surface mount package facilitates integration into compact electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.35 | $8.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX165ACWN is an 8-bit ADC.
The sampling rate is 200kSPS.
The operating supply voltage is 5V.
The MAX165ACWN is supplied in an 18-SOIC package.
The operating temperature range is 0°C to 70°C.
