| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
122 pcs
|
122 pcs | On Request | 1 | On Request | On Request | 00/02+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Efficiency | |
| Input Range | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Package / Case | |
| Quiescent Current | |
| Topology |

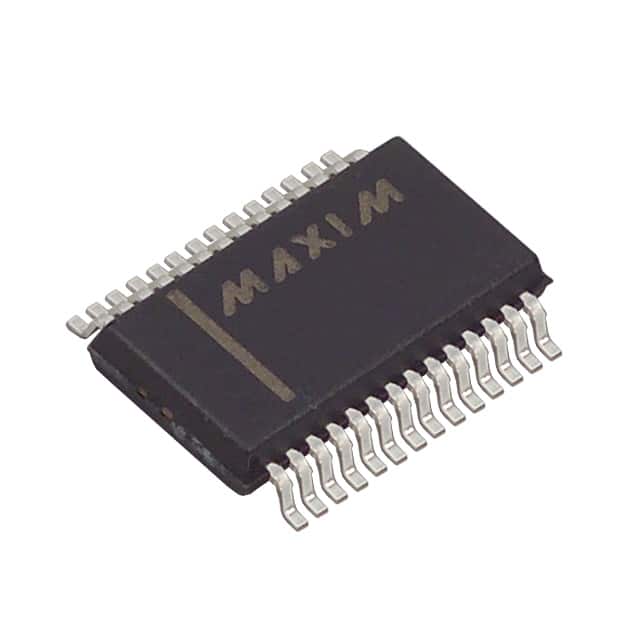

The MAX1632EAI from Analog Devices Inc./Maxim Integrated is a high-performance, dual/triple-output buck-topology step-down switch-mode power supply controller. It is designed to generate logic-supply voltages in battery-powered systems, achieving up to 96% efficiency. This device features dual adjustable outputs ranging from 2.5V to 5.5V, along with a 12V/120mA linear regulator. It operates with a switching frequency between 200kHz and 300kHz and supports an input voltage range of 4.2V to 30V.
The MAX1632EAI includes features such as on-board power-up sequencing, power-good signaling with delay, digital soft-start, and internal frequency-compensation networks. Its low-noise, fixed-frequency operation makes it suitable for sensitive mobile communications and pen-entry applications. The controller is housed in a 28-SSOP package and is designed for surface mounting.
Applications for the MAX1632EAI include notebook and subnotebook computers, PDAs, mobile communicators, and desktop CPU local DC-DC converters. Its robust design and efficiency make it a versatile component for power management in portable electronics.
The input voltage range is 4.2V to 30V.
It offers dual adjustable outputs from 2.5V to 5.5V, fixed 3.3V and 5V modes, and a 12V linear regulator output.
The 12V linear regulator has an output current capability of 120mA.
The switching frequency ranges from 200kHz to 300kHz.
The operating temperature range is -40°C to 85°C.
The MAX1632EAI is supplied in a 28-SSOP package.
