MAX5048BAUT+T
AD(RoHS)
The MAX5048BAUT+T is a high-speed MOSFET driver from Analog Devices, featuring independent source-and-sink outputs for controllable switching speeds. It operates from a 4V to 12.6V supply.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,232 pcs
|
7232 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present |

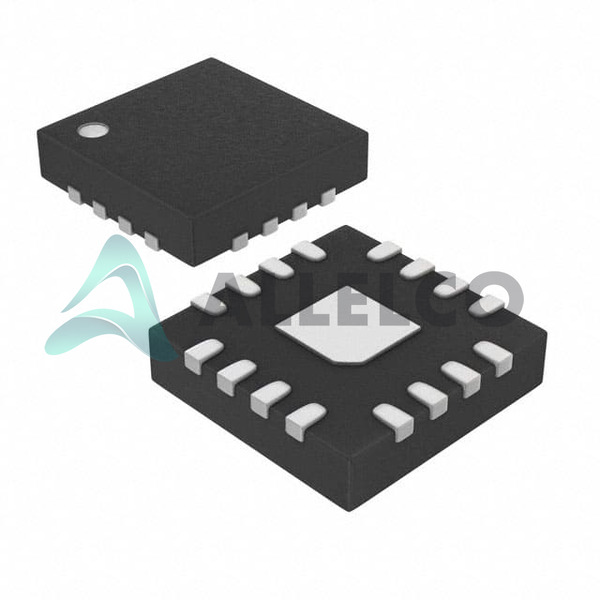

The MAX16025TE+ by Maxim Integrated is a versatile dual-/triple-/quad-voltage monitor and sequencer designed for multivoltage applications. It features a wide operating voltage range of 2.2V to 28V, providing design flexibility.
This device offers both fixed thresholds for common system voltages (3.3V, 2.5V, 1.8V, 1.5V, 1.2V) and 1.5% accurate adjustable threshold monitoring for voltages down to 0.5V. The delay timing is fixed at a minimum of 140ms and can also be adjusted using external capacitors, allowing for controlled power-supply sequencing.
Each detector circuit includes an enable input for independent control. The outputs are available in push-pull or open-drain configurations, with the open-drain version supporting voltages up to 28V for interfacing with DC-DC regulators. The MAX16025TE+ is housed in a compact 4mm x 4mm TQFN package and is fully specified for operation from -40°C to +125°C.
Ideal applications include multivoltage systems, DC-DC supplies, servers, workstations, storage systems, and networking/telecommunication equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX16025TE+ operates from 2.2V to 28V.
Fixed thresholds are available for 3.3V, 2.5V, 1.8V, 1.5V, and 1.2V systems.
The adjustable threshold monitor has a typical accuracy of 1.5%.
The fixed thresholds have a typical accuracy of 2.7% over temperature.
The delay timing is fixed at 140ms minimum and can be adjusted with an external capacitor.
The MAX16025TE+ is fully specified from -40°C to +125°C.
The MAX16025TE+ is available in a 4mm x 4mm TQFN package.
