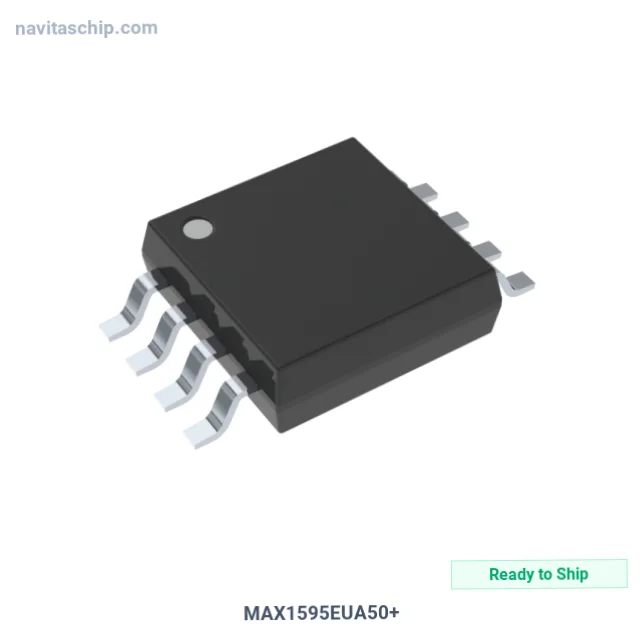

MAX1595EUA50+ The MAX1595EUA50+ is a step-up/step-down charge pump regulator from Analog Devices / Maxim Integrated. It provides a regulated 5V output at up to 125mA from a 1.8V to 5.5V input.
Mfr Part #:

MAX1595EUA50+

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX1595EUA50+ is a step-up/step-down charge pump regulator from Analog Devices / Maxim Integrated. It provides a regulated 5V output at up to 125mA from a 1.8V to 5.5V input.
✓ Total Stock: 20,003 pcs
$ Price Range: $1.08

MAX1595EUA50+ Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX1595EUA50+ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Output Voltage
Quiescent Current
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

MAX1595EUA50+ Description

Short technical summary and product information.

The MAX1595EUA50+ is a versatile charge pump regulator designed by Analog Devices / Maxim Integrated. It efficiently generates a regulated 5V output voltage from an input range of 1.8V to 5.5V, capable of delivering up to 125mA of output current. This device utilizes a unique control architecture allowing it to step up or step down the input voltage as needed for regulation.



Key features include a high 1MHz switching frequency, which enables the use of small external ceramic capacitors, eliminating the need for inductors. This makes it ideal for applications requiring compact designs. The regulator offers ±3% output voltage accuracy, a low 220µA quiescent current, and a 0.1µA shutdown current with load disconnect.



The MAX1595EUA50+ is housed in a space-saving 8-pin µMAX package, suitable for surface mount applications. Its operating temperature range is -40°C to +85°C, making it suitable for various environmental conditions. This component is well-suited for battery-powered devices, miniature equipment, and local voltage conversion needs.



Applications include white LED power, flash memory supplies, PCMCIA cards, and backup-battery boost converters. The absence of inductors simplifies the bill of materials and reduces overall solution size and cost.

MAX1595EUA50+ Quick Information

Product Type: Charge Pump Regulator
Series: MAX1595
Canonical Name: MAX1595EUA50+ Step-Up/Step-Down Charge Pump Regulator
Subcategory: DC-DC Switching Regulator

MAX1595EUA50+ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX1595EUA50+ Estimated Pricing

Qty Low High
1+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX1595EUA50+ Features

  • Regulated 5V output at 125mA.
  • Wide 1.8V to 5.5V input voltage range.
  • 1MHz switching frequency enables small capacitors.
  • No inductors required for compact design.
  • Operates from -40°C to +85°C.

MAX1595EUA50+ Applications

  • Ideal for white LED power supplies.
  • Suitable for flash memory applications.
  • Used in battery-powered devices.
  • Powers miniature equipment designs.
  • Supports PCMCIA card voltage needs.

MAX1595EUA50+ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the MAX1595EUA50+?

1.8V to 5.5V.

What is the output voltage of the MAX1595EUA50+?

Fixed 5V.

What is the maximum output current?

125mA.

What is the switching frequency?

1MHz.

What is the operating temperature range?

-40°C to +85°C.

What package does the MAX1595EUA50+ come in?

8-uMAX/uSOP (also 8-TSSOP, 8-MSOP).

What is the quiescent current?

220µA typical.
