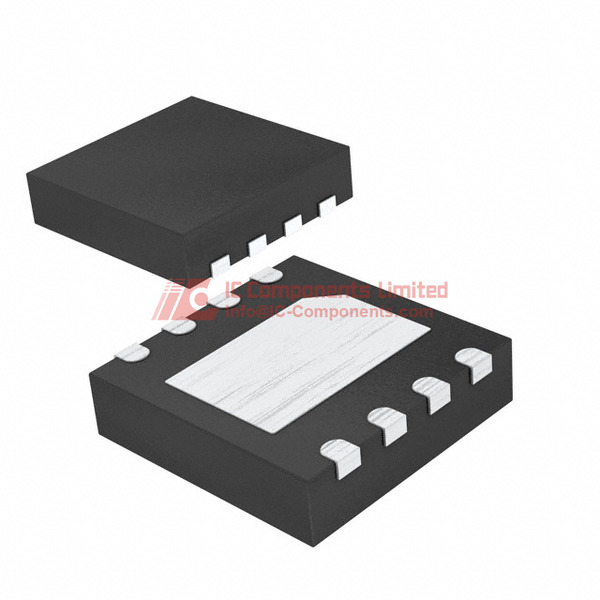

The MAX15492GTA+T is a synchronous half-bridge driver from Analog Devices Inc. (formerly Maxim Integrated) featuring an ultra-low-power mode that reduces supply current to 4µA, extending battery life. It is designed to work with controller ICs in multiphase CPU core regulators and applications like Intel® Ultrabook™/Notebook Computers and Tablet Computers.
Key electrical specifications include a wide 2V to 24V input voltage range and a 4.2V to 5.5V bias supply range. The device optimizes light-load efficiency and prevents shoot-through currents with adaptive dead-time control, offering a minimum guaranteed dead-time of 7ns. It supports operation up to 3MHz per phase.
The low-side driver is optimized for 3nF capacitive loads with typical fall/rise times of 3ns/7ns, while the high-side driver has typical fall/rise times of 7ns/14ns. The MAX15492GTA+T has a low-side on-resistance of 0.7Ω and a high-side on-resistance of 1.5Ω, with a propagation delay of 12ns.
This component is available in a compact 8-pin, 2mm x 2mm TDFN package with an exposed pad, suitable for surface mounting. The operating temperature range is -40°C to +105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2V to 24V.
The bias supply voltage range is 4.2V to 5.5V.
The typical low-side on-resistance is 0.7Ω.
The typical high-side on-resistance is 1.5Ω.
The minimum guaranteed dead-time is 7ns.
The supply current in ultra-low-power mode is 4µA.
The operating temperature range is -40°C to +105°C.
