| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,040 pcs
|
2040 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Programmable Features | |
| Supplier Device Package | |
| Supply Current | |
| Tape & Reel | |
| Type | |
| Voltage |
The MAX15093GWL+T is an integrated solution for hot-swap applications, designed for the safe insertion and removal of circuit cards from live backplanes. It features a 3.8mΩ internal power MOSFET and an electronic circuit breaker. The device operates across a supply voltage range of 2.7V to 18V and can handle up to 15A of continuous load current.
Key protection features include foldback current limiting during startup for inrush current control, and VariableSpeed/BiLevel protection against short-circuit and overcurrent faults. It also offers overvoltage and undervoltage protection, internal overtemperature protection, power-good output, and fault-indicator output. The MAX15093GWL+T is factory calibrated for accurate overcurrent protection with ±10% accuracy.

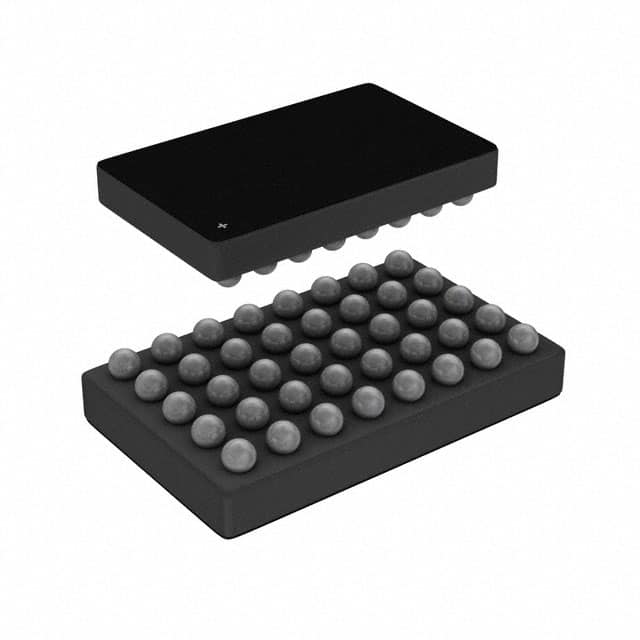

This hot swap controller is available in a 40-WLP (2.57x4.03) package and is designed for surface mounting. It operates within an extended temperature range of -40°C to +105°C. Programmable features include circuit breaker, current limit, fault timeout, OVP, slew rate, and UVLO.
Applications for this device include RAID systems, storage bridge bays, disk drive power, server I/O cards, and general industrial use.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.31 | $1.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX15093GWL+T supports a supply voltage range of 2.7V to 18V.
The MAX15093GWL+T has a maximum continuous current rating of 15A.
The MAX15093GWL+T is supplied in a 40-WLP (2.57x4.03) package, suitable for surface mounting.
Key protection features include foldback current limiting, overvoltage protection, undervoltage lockout, overtemperature protection, and a circuit breaker function.
The MAX15093GWL+T operates from -40°C to +105°C.
