| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
202,698 pcs
|
202698 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Chemistry | |
| Charge Current | |
| Current | |
| Fault Protection | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage |
The MAX1501ETE+T is a highly integrated, linear battery charger with thermal regulation, designed by Analog Devices / Maxim Integrated for portable applications. This device simplifies charging solutions by integrating the current-sense resistor, PMOS pass element, and thermal-regulation circuitry.
It is capable of charging a single lithium-ion (Li+) cell or three-cell NiMH/NiCd batteries. The MAX1501ETE+T supports a wide input voltage range of 4.5V to 13V, with charging disabled if the input exceeds 6.5V. It offers a programmable fast-charge current up to 1.4A and features proprietary programmable die temperature regulation at +95°C, +115°C, and +135°C.

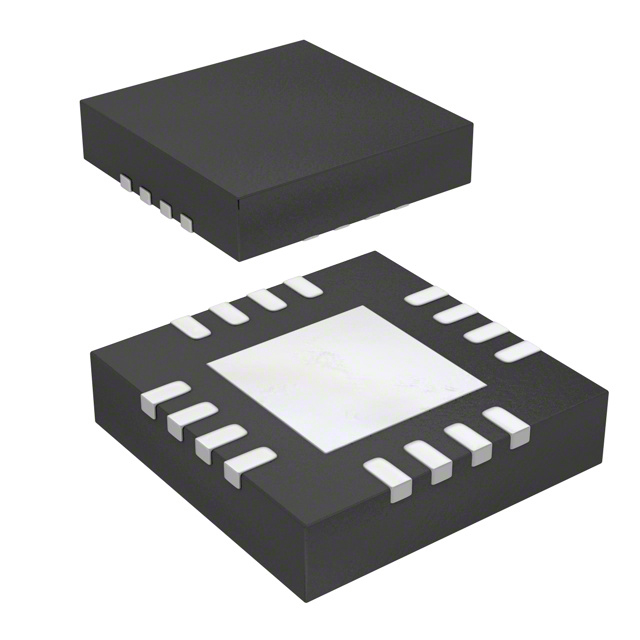

This battery charger IC operates over an extended temperature range of -40°C to +85°C. It is available in a compact 16-pin thermally enhanced 5mm x 5mm thin QFN package, suitable for space-constrained designs. The device includes features like input power detection (ACOK) and input under-/overvoltage protection.
Applications for the MAX1501ETE+T include cellular phones, PDAs, digital cameras, MP3 players, USB appliances, charging cradles, and Bluetooth equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 13V, but charging is disabled when the input voltage exceeds 6.5V.
It is available in a 16-WQFN Exposed Pad package, with supplier device package 16-TQFN (5x5).
The operating temperature range is -40°C to +85°C.
The maximum fast-charge current is 1.4A.
It supports 1 to 3 series cells.
It includes over-voltage fault protection.
The die temperature can be regulated at +95°C, +115°C, or +135°C.
