| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,981 pcs
|
2981 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Data Rate | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Package / Case | |
| Supplier Device Package | |
| Technology | |
| Type | |
| Voltage Supply |

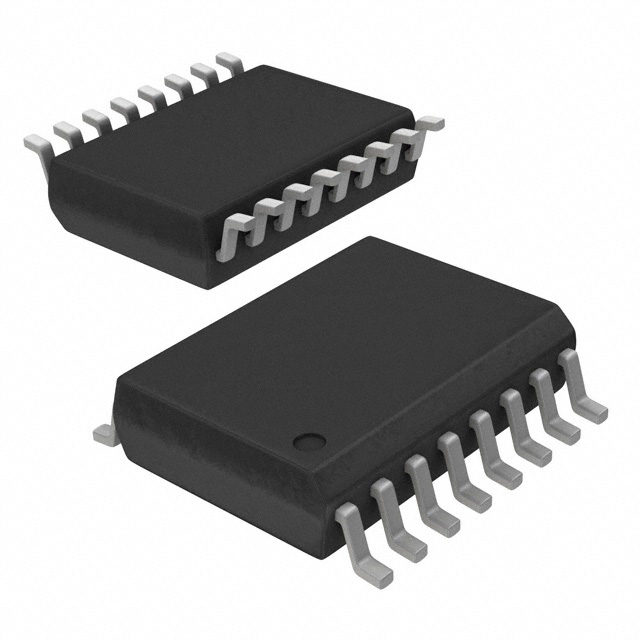

The MAX14942GWE is a digital isolator from Analog Devices/Maxim Integrated, specifically designed for RS485 communication interfaces. This component provides robust isolation with a rating of 5000Vrms, ensuring signal integrity and protection in demanding environments.
Key electrical specifications include a maximum data rate of 20Mbps and a typical common-mode transient immunity (CMTI) of 35kV/µs. The device supports a wide supply voltage range of 1.71V to 5.5V for side 1 and 4.5V to 5.5V for side 2. It operates reliably within an extended temperature range of -40°C to 105°C.
This isolator is housed in a 16-SOIC package, suitable for surface-mount applications. Its unidirectional channel type and 2/1 input configuration make it versatile for various interface designs. The capacitive coupling technology ensures efficient and reliable signal isolation.
Designed for applications requiring high-speed data transmission with enhanced safety and noise immunity, the MAX14942GWE is a suitable choice for industrial automation, communication systems, and power supply interfaces.
The MAX14942GWE offers an isolation voltage of 5000Vrms.
The maximum data rate for the MAX14942GWE is 20Mbps.
The MAX14942GWE operates within a temperature range of -40°C to 105°C.
The MAX14942GWE supports RS485 interface type.
The MAX14942GWE has 3 channels.
The MAX14942GWE is supplied in a 16-SOIC package.
