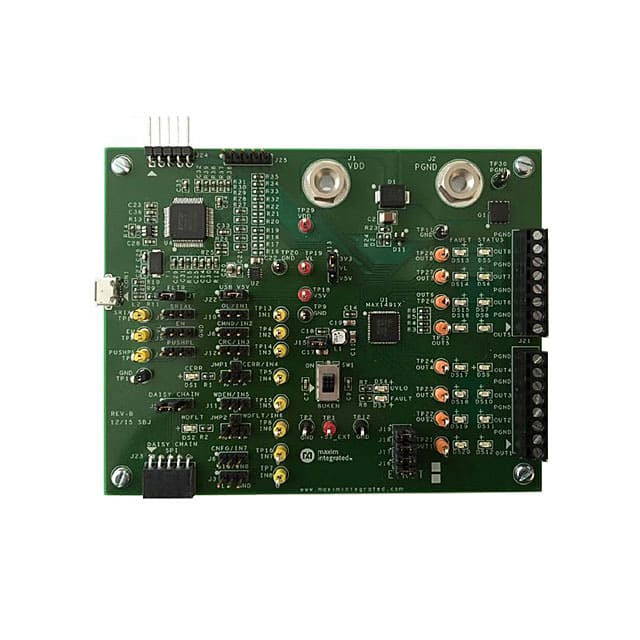

MAX14913EVKIT# The MAX14913EVKIT# is an evaluation kit from Analog Devices / Maxim Integrated designed to evaluate the MAX14913 octal digital output driver. It provides a proven design with a graphical user interface for PC communication.
Mfr Part #:

MAX14913EVKIT#

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX14913EVKIT# is an evaluation kit from Analog Devices / Maxim Integrated designed to evaluate the MAX14913 octal digital output driver. It provides a proven design with a graphical user interface for PC communication.
✓ Total Stock: 8,594 pcs
$ Price Range: $0.99

MAX14913EVKIT# Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
8,594 pcs
On Request
8594 pcs On Request 1 On Request On Request 1714 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX14913EVKIT# Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Function
Mounting Type
Operating Temperature Range
Primary Attributes
Storage Temperature
Supplied Contents
Tape & Reel
Type
Utilized IC
View Similar Products (0)

MAX14913EVKIT# Description

Short technical summary and product information.

The MAX14913EVKIT# evaluation kit (EV kit) from Analog Devices / Maxim Integrated offers a ready-to-use platform for evaluating the MAX14913 octal digital output driver. This kit includes a fully assembled and tested evaluation board and a graphical user interface (GUI) compatible with Windows 7, 8, and 10. The GUI facilitates communication from a PC to the target device via a USB port, allowing control of the MAX14913 in either Parallel Mode or Serial (SPI) Mode.



The EV kit supports robust operation with a wide range of input voltages and load conditions. It features an SPI interface with clock rates up to 20MHz and a Parallel Interface with switching rates up to 200kHz. The operating temperature range is -40°C to +125°C. The EV kit requires an external +24V power supply and can consume up to 10A when fully loaded. The board includes on-board LED indication for status and fault conditions, daisy-chain capability, and reverse-voltage protection.



The MAX14913EVKIT# comes with a MAX14913AKN+ installed in a 56-pin, 8 x 8mm TQFN-EP package. The evaluation board is designed for surface mount installation. This kit is ideal for engineers needing to quickly assess the capabilities and performance of the MAX14913 driver in their specific applications.

MAX14913EVKIT# Quick Information

Product Type: Evaluation Board
Canonical Name: MAX14913 Evaluation Kit
Subcategory: High Side Driver

MAX14913EVKIT# Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX14913EVKIT# Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX14913EVKIT# Features

  • Evaluates MAX14913 octal digital output driver.
  • Includes PC GUI via USB for control.
  • Supports SPI and Parallel interface modes.
  • Wide input and logic voltage ranges.
  • Operates from +24V supply, up to 10A.

MAX14913EVKIT# Applications

  • Evaluating octal digital output drivers.
  • Testing high-side driver performance.
  • Developing industrial automation systems.
  • Prototyping power control circuits.

MAX14913EVKIT# FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum SPI clock rate supported by this evaluation kit?

The SPI interface supports a maximum clock rate of 20MHz.

What is the maximum switching rate for the parallel interface?

The parallel interface supports a maximum switching rate of 200kHz.

What is the operating temperature range for this evaluation kit?

The operating temperature range is from -40°C to +125°C.

What power supply voltage is required for the evaluation kit?

The EV kit must be powered from an external +24V power supply.

What is the maximum current consumption when the evaluation kit is fully loaded?

The evaluation kit can consume up to 10A when fully loaded.

What is the package type and dimensions for the installed IC?

The IC is installed in a 56-pin, 8 x 8mm TQFN-EP package.
