The MAX14589EEWL+T is a double-pole/double-throw (DPDT) analog switch designed for high-density applications. It offers Beyond-the-Rails™ capability, allowing signals from -5.5V to +5.5V to pass without distortion, even when the power supply is below the signal range. This makes it suitable for applications requiring negative audio and video signal handling.
Key electrical specifications include a low on-resistance of 380mOhm (maximum) and 0.2 Ohm (typical), with a channel-to-channel matching of 5mOhm. The device operates from a single supply voltage range of +1.6V to +5.5V and features a -3dB bandwidth of 200MHz. It has a switch time of 10ms (Ton) and 2.25ms (Toff), with a channel capacitance of 25pF and a quiescent current of 400nA (maximum).

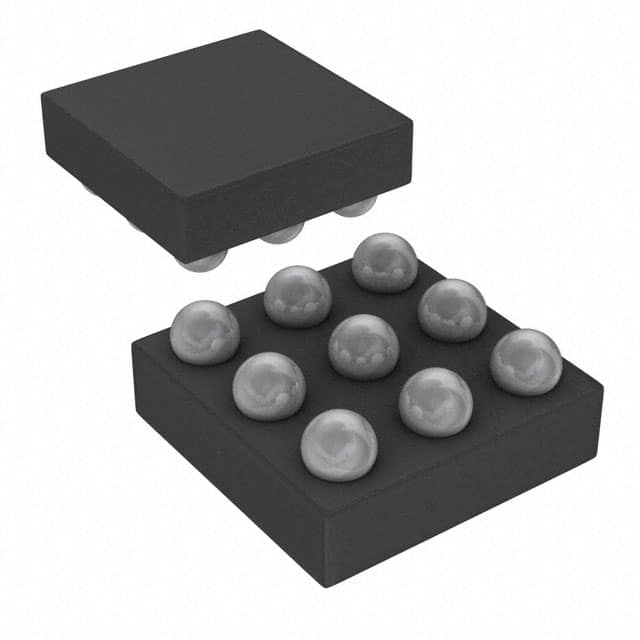

This analog switch is available in a compact 9-WLP (1.26x1.26) package, making it ideal for space-constrained designs. It operates over an extended temperature range of -40°C to +85°C. The MAX14589EEWL+T also includes ESD protection on its analog signal ports.
Applications for this device include smartphones, tablets, portable audio/video equipment, and portable navigation devices. The MAX14594E variant offers additional click-and-pop suppression for audio applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum on-resistance is 380 milliohms.
The bandwidth is 200 MHz.
It operates over a supply voltage range of 1.6 V to 5.5 V.
It is available in a 9-WFBGA, WLBGA surface mount package.
The typical channel-to-channel matching is 5 milliohms.
-40°C to 85°C.
