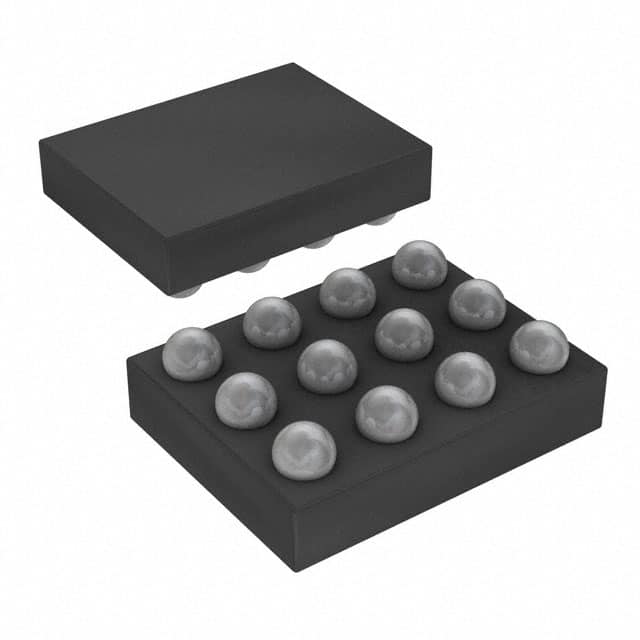

MAX11800EWC+T The MAX11800EWC+T is a 12-bit touch screen controller from Analog Devices / Maxim Integrated. It features an SPI interface and operates from a 1.7V to 3.6V supply.
Mfr Part #:

MAX11800EWC+T

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX11800EWC+T is a 12-bit touch screen controller from Analog Devices / Maxim Integrated. It features an SPI interface and operates from a 1.7V to 3.6V supply.
✓ Total Stock: 2,499 pcs
$ Price Range: $2.38

MAX11800EWC+T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
2,499 pcs
On Request
2499 pcs On Request 1 On Request On Request 932 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX11800EWC+T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Interface
Mounting Type
Operating Temperature
Resolution (Bits)
Supplier Device Package
Supplier Package
Tape & Reel
Touchscreen
Voltage
View Similar Products (0)

MAX11800EWC+T Description

Short technical summary and product information.

The MAX11800EWC+T is a low-power, 12-bit touch screen controller designed for power-sensitive applications. It integrates a SAR ADC and a multiplexer for interfacing with resistive touch screens. The device supports an SPI serial interface and operates from a single supply voltage ranging from 1.7V to 3.6V.



Key features include X/Y coordinate and touch pressure measurement, ratiometric measurement, and data tagging for measurement and touch event information. The controller also includes digital preprocessing to reduce bus loading and interrupt generation, along with auto power-down control for low-power operation.



This component is available in a 12-WLP (2.14x1.56) package and is suitable for surface mounting. It is specified for an operating temperature range of -40°C to 85°C.



The MAX11800–MAX11803 series is ideal for portable applications requiring efficient touch-screen control.

MAX11800EWC+T Quick Information

Product Type: Touch Screen Controller
Canonical Name: MAX11800EWC+T Touch Screen Controller
Subcategory: Data Acquisition

MAX11800EWC+T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX11800EWC+T Estimated Pricing

Qty Low High
1+ $2.38 $2.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX11800EWC+T Features

  • 12-bit SAR ADC resolution.
  • SPI serial interface support.
  • 1.7V to 3.6V single supply operation.
  • Surface mount 12-WLP package.
  • Operates from -40°C to 85°C.

MAX11800EWC+T Applications

  • Ideal for handheld equipment.
  • Suitable for portable applications.
  • Enables low-power touch control.
  • Supports resistive touch screens.

MAX11800EWC+T FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resolution of the MAX11800EWC+T's ADC?

The ADC resolution is 12 bits.

What interface does the MAX11800EWC+T use?

The MAX11800EWC+T uses an SPI interface.

What is the operating voltage range for the MAX11800EWC+T?

The operating voltage range is 1.7V to 3.6V.

What is the operating temperature range for the MAX11800EWC+T?

The operating temperature range is -40°C to 85°C.

What package type is the MAX11800EWC+T available in?

The MAX11800EWC+T is available in a 12-WLP (2.14x1.56) package.

How is the MAX11800EWC+T mounted?

The MAX11800EWC+T is a surface mount device.
