| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
904 pcs
|
904 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Input Type | |
| Number of Bits | |
| Number of Inputs | |
| Reference Type |

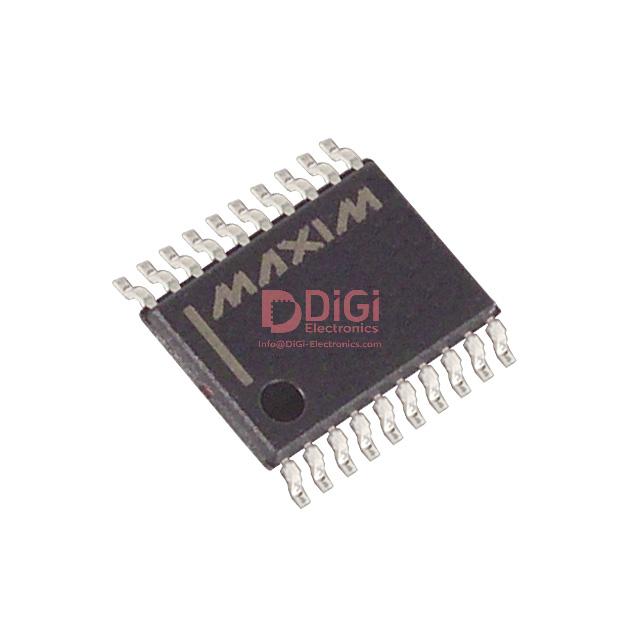

The MAX1177AEUP is a 16-bit successive approximation register (SAR) analog-to-digital converter (ADC) from Analog Devices / Maxim Integrated. It offers a sampling rate of 135kSPS and accepts a single-ended analog input. The device uses a parallel data interface for high-speed data transfer and includes both external and internal reference options.
The ADC operates with a 5V analog supply and a digital supply range of 2.7V to 5V, making it suitable for mixed-voltage systems. The architecture provides a 1:1 S/H-ADC ratio with a single internal sample-and-hold and a single ADC core.
The MAX1177AEUP is housed in a 20-pin TSSOP package, suitable for space-constrained PCB designs. It is designed for applications requiring moderate-speed, high-resolution analog-to-digital conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX1177AEUP has a 16-bit resolution.
The sampling rate is 135kSPS.
The analog supply voltage is 5V, and the digital supply voltage range is 2.7V to 5V.
The MAX1177AEUP is available in a 20-TSSOP package.
The architecture is successive approximation register (SAR).
The data interface is parallel.
