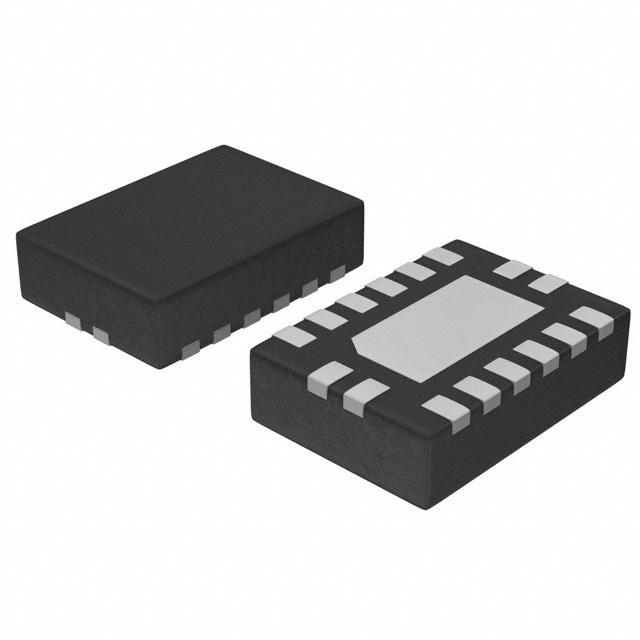

MAX11198ATE+T The Analog Devices MAX11198ATE+T is a 16-bit, 2MSPS SAR ADC featuring dual simultaneous sampling and a differential input. It offers an SPI-compatible serial interface and comes in a compact 16-TQFN package.
Mfr Part #:

MAX11198ATE+T

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices MAX11198ATE+T is a 16-bit, 2MSPS SAR ADC featuring dual simultaneous sampling and a differential input. It offers an SPI-compatible serial interface and comes in a compact 16-TQFN package.
✓ Total Stock: 50 pcs
$ Price Range: $8.35

MAX11198ATE+T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX11198ATE+T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Configuration
Data Interface
Features
Input Type
Mounting Type
Number of A
Number of Bits
Number of Inputs
Operating Temperature
Ratio
Reference Type
Sampling Rate (Per Second)
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

MAX11198ATE+T Description

Short technical summary and product information.

The MAX11198ATE+T from Analog Devices is a high-performance, dual-channel, 16-bit SAR Analog-to-Digital Converter (ADC) capable of simultaneous sampling at up to 2MSPS. This device features differential inputs, providing excellent static and dynamic performance for demanding applications.



Designed for efficiency and reduced board space, the MAX11198ATE+T operates from a supply voltage range of 3.0V to 5.25V and includes an integrated 2.5V reference. It communicates via an SPI-compatible serial interface with a dual DOUT bus, simplifying system integration. The ADC is specified for the extended industrial temperature range of -40°C to +125°C.



This ADC is housed in a tiny 16-pin, 3mm x 2mm ultra TDFN package, making it suitable for space-constrained designs. Its capabilities make it ideal for applications such as encoders, resolvers, LVDT, and current sensing in motors.

MAX11198ATE+T Quick Information

Product Type: Analog to Digital Converter (ADC)
Canonical Name: MAX11198ATE+T 16-Bit Dual Simultaneous Sampling SAR ADC
Subcategory: ADC

MAX11198ATE+T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX11198ATE+T Estimated Pricing

Qty Low High
1+ $8.35 $8.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX11198ATE+T Features

  • Dual-channel, 16-bit SAR ADC.
  • Up to 2MSPS throughput rate.
  • Simultaneous sampling capability.
  • Differential inputs for signal integrity.
  • Compact 16-TQFN (2x3mm) package.

MAX11198ATE+T Applications

  • Ideal for encoder applications.
  • Suitable for resolver measurements.
  • Used in LVDT systems.
  • Effective for motor current sensing.
  • Applicable in PLC systems.

MAX11198ATE+T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the MAX11198ATE+T ADC?

The MAX11198ATE+T has a resolution of 16 bits.

What is the maximum sampling rate for the MAX11198ATE+T?

The MAX11198ATE+T can achieve a throughput rate of 2MSPS.

What supply voltage range does the MAX11198ATE+T support?

The MAX11198ATE+T operates over a supply voltage range of 3V to 5.25V.

What is the operating temperature range for this ADC?

The MAX11198ATE+T is specified for an operating temperature range of -40°C to +125°C.

What package type is the MAX11198ATE+T supplied in?

The MAX11198ATE+T is supplied in a 16-TQFN (2x3mm) package.

Does the MAX11198ATE+T have simultaneous sampling capabilities?

Yes, the MAX11198ATE+T features dual-channel simultaneous sampling.

What type of input does the MAX11198ATE+T use?

The MAX11198ATE+T uses differential inputs.
