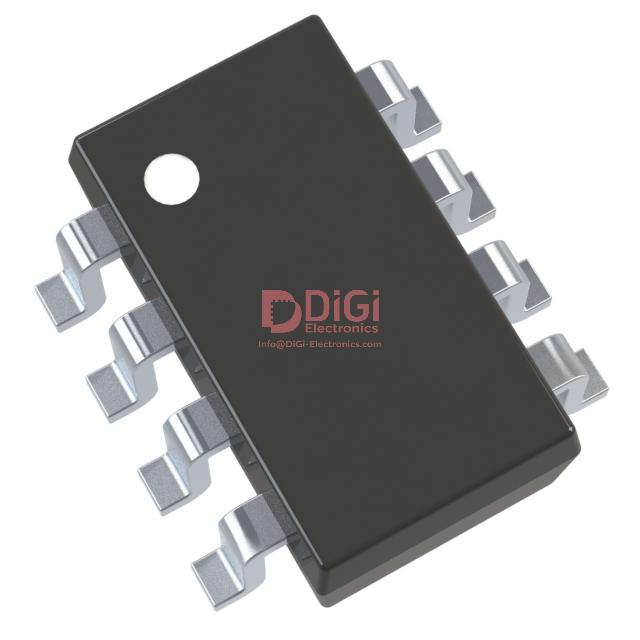

MAX1116EKA-T

The MAX1116EKA-T is an 8-bit Analog to Digital Converter (ADC) manufactured by Analog Devices Inc. This component is part of the Data Acquisition product family and is specifically designed for applications requiring efficient analog-to-digital conversion.

Key electrical specifications include an 8-bit resolution, enabling precise conversion of analog signals. It operates with a sampling rate of up to 100kSPS, making it suitable for a variety of real-time data acquisition tasks. The device features a single-ended input type and utilizes the SPI data interface for communication. It is configured with a MUX-S/H-ADC ratio of 1:1 and employs a Successive Approximation Register (SAR) architecture.

The MAX1116EKA-T operates within a supply voltage range of 5V for both analog and digital circuits. The operating temperature range is specified from -40°C to 85°C, ensuring reliable performance in diverse environmental conditions. The component is housed in a compact SOT-23-8 package, designed for surface mount technology, facilitating integration into compact electronic designs.

This ADC is suitable for various embedded systems and data acquisition modules where accurate and timely conversion of analog signals is critical. Its robust specifications and package type make it a versatile choice for engineers designing new products or upgrading existing ones.
