| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Clip Height | |
| Clip Length | |
| Clip Width | |
| Device | |
| Finish | |
| For Use With | |
| Material | |
| Mounting Type |

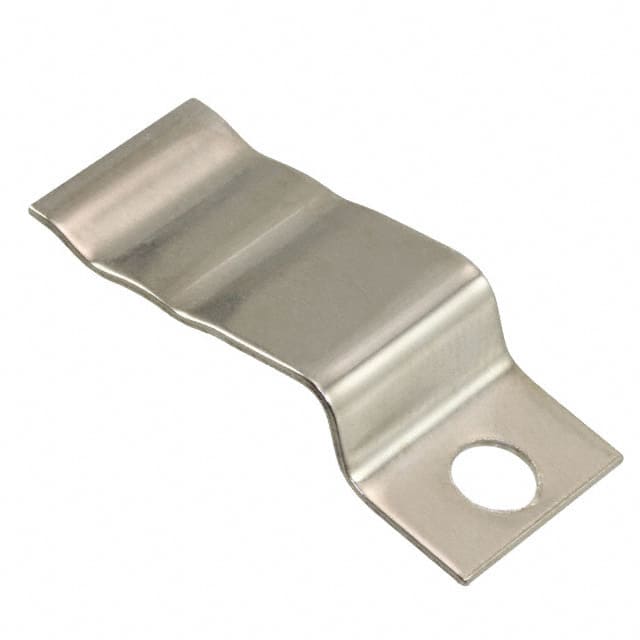

The Aavid MAX07NG is a thermal accessory clip specifically designed for TO-220 packages. It serves as a quick and robust attachment method, eliminating the need for mounting holes, rivets, or screws. This design ensures consistent pressure at the center of the device, improving contact with the heatsink for enhanced thermal performance.
The clip is constructed from spring steel with a nickel-plated finish for durability. Its mechanical specifications include a clip width of 12.00 mm, a clip length of 29.70 mm, and a clip height of 5.10 mm. The MAX07NG is part of the Max Clip System™ and is intended for use with TO-220 devices.
This accessory is designed to save on labor and hardware costs while increasing performance and design flexibility. It is suitable for applications requiring reliable thermal management solutions for TO-220 components.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The clip width is 12.00 mm.
It features screw mounting.
It is made from spring steel.
It is nickel plated.
It measures 12.00 mm in width, 29.70 mm in length, and 5.10 mm in height.
