| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Diode Type | |
| Forward Voltage | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation | |
| Q @ Vr, F | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

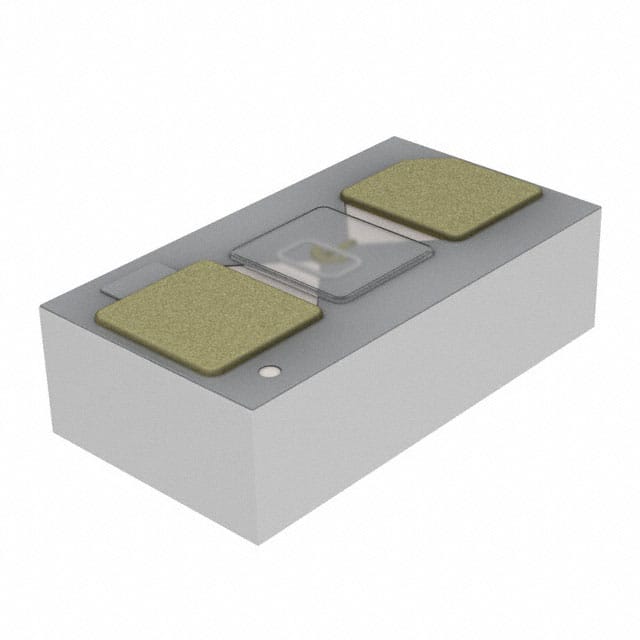

The MAVR-011020-14110G is a gallium arsenide flip chip hyperabrupt varactor diode designed for constant gamma (0.9/1.0/1.1 min/typ/max from 2V to 12V) to ensure linear tuning over a wide voltage range. It offers low parasitic capacitance: typical total capacitance of 0.275pF at 0V, 0.097pF at 4V, and 0.048pF at 15V (measured at 1MHz). The device provides a minimum quality factor (Q) of 3000 at 4V and 50MHz, making it suitable for high-Q applications. The breakdown voltage is 22V minimum, with reverse leakage current of 100nA maximum at 18V. Forward voltage at 1mA is typically 1.2V. This varactor diode is fully passivated with silicon nitride and polyimide for scratch protection, enabling reliable handling. It is offered in a surface mount 2-FlipChip package, supplied in gel pack or pocket tape options. The operating temperature range is -40°C to +125°C, and it can withstand 500 temperature cycles from -65°C to +150°C.
| Qty | Low | High |
|---|---|---|
| 2,000+ | $5.27 | $5.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22V minimum at IR = 10 µA.
1.15V to 1.25V minimum/typical/maximum at 1 mA.
2-FlipChip surface mount package, supplied as a die.
Typical 0.275pF, minimum 0.19pF at 0V, 1MHz.
Minimum 3000 at 4V, 50MHz.
Gamma (2-12V) is 0.9 minimum, 1.0 typical, 1.1 maximum.
-40°C to +125°C (junction).
