| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Output Current | |
| Output Voltage | |
| Package / Case |

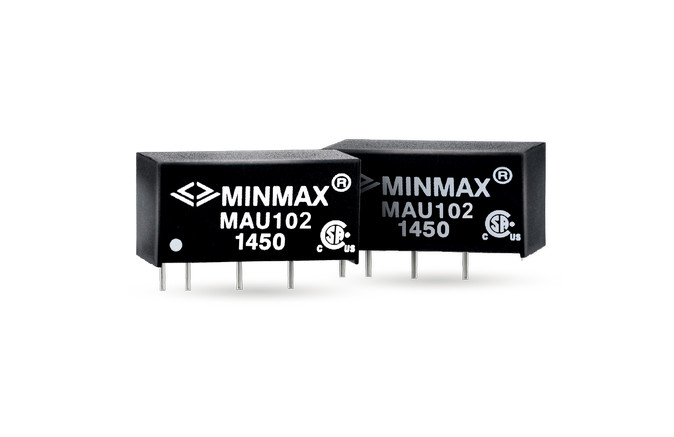

The MINMAX MAU100 series, including the MAU123 model, offers a 1W encapsulated DC-DC converter in a compact SIP-7 package. This series is designed for industrial and embedded applications requiring cost-effective isolation.
The MAU123 provides a nominal 9VDC output voltage with an output current capability of up to 110mA at maximum load. It features a wide input voltage range, supporting 24V input models (21.6-26.4 VDC). Key electrical specifications include 1000VDC I/O isolation, typical line regulation of 1.2%, and a load regulation of 5% for this model. The efficiency is up to 81% typical.
With a wide operating ambient temperature range of -40°C to +85°C, the MAU123 ensures reliable performance in demanding environments. It also includes short-term short circuit protection. The converter is housed in a plastic SIP-7 package suitable for through-hole mounting.
This series is compliant with UL/cUL 60950-1 safety standards, making it a suitable choice for applications needing essential isolation for signal interfaces, sensor systems, and distributed power architectures.
The MAU123 has a nominal output voltage of 9 VDC.
The MAU123 can provide up to 110 mA of output current at maximum load.
The MAU100 series, including the MAU123, offers 1000 VDC of I/O isolation.
The MAU123 operates within a wide ambient temperature range of -40°C to +85°C.
The MAU123 is housed in an industry-standard SIP-7 package.
The MAU123 has a typical efficiency of 76% at maximum load.
