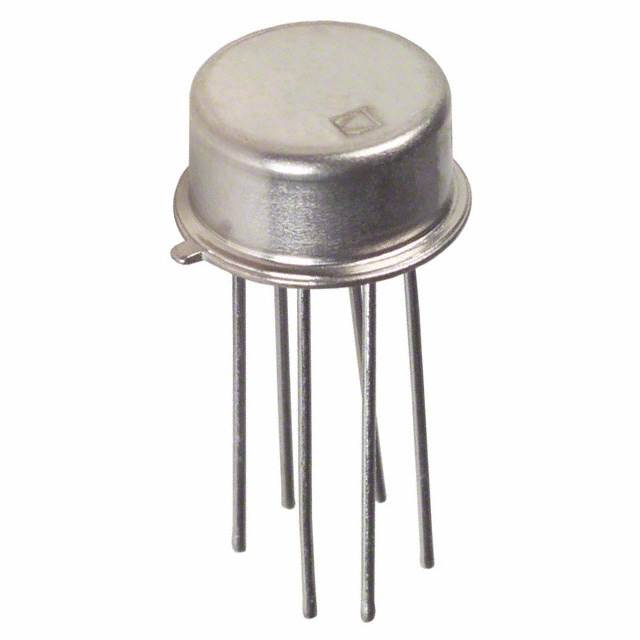

MAT01GH The MAT01GH is a monolithic dual NPN transistor from Analog Devices, featuring a 45V breakdown voltage and a minimum hFE of 500. It is supplied in a TO-78-6 metal can package.
Mfr Part #:

MAT01GH

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAT01GH is a monolithic dual NPN transistor from Analog Devices, featuring a 45V breakdown voltage and a minimum hFE of 500. It is supplied in a TO-78-6 metal can package.
✓ Total Stock: 5,000 pcs
$ Price Range: $0.99

MAT01GH Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAT01GH Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Lead Spacing
Mounting Type
Operating Temperature
Power
Supplier Device Package
Supplier Package
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

MAT01GH Description

Short technical summary and product information.

The MAT01GH is a matched monolithic dual NPN transistor designed for high-performance applications. It offers a low offset voltage (VBE match) of 40 µV typical and a low temperature drift of 0.5 µV/°C maximum. The transistor boasts a high minimum hFE of 500, maintained over a wide collector current range from 10 nA to 10 mA, making it suitable for low-power, low-level input stages.



Key electrical characteristics include a breakdown voltage of 45V, a frequency response up to 450MHz, and low noise voltage of 0.23 µV p-p. The device operates over a temperature range of -55°C to 150°C (TJ) and is available in a TO-78-6 metal can package, suitable for through-hole mounting.



Applications for the MAT01GH include weigh scales, low-noise operational amplifier front ends, current mirrors, current sinks/sources, low-noise instrumentation amplifiers, voltage-controlled attenuators, and log amplifiers. Its excellent hFE linearity and high gain at low collector currents make it a versatile component for precision analog circuit design.

MAT01GH Quick Information

Product Type: Dual NPN Transistor
Canonical Name: MAT01GH Monolithic Dual NPN Transistor
Subcategory: BJT Arrays

MAT01GH Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAT01GH Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAT01GH Features

  • Matched monolithic dual NPN transistor.
  • Low VOS: 40 µV typical.
  • High hFE: 500 minimum.
  • Excellent hFE linearity.
  • TO-78-6 metal can package.

MAT01GH Applications

  • Ideal for weigh scales.
  • Used in low noise op amp front ends.
  • Suitable for current mirror circuits.
  • Applicable to instrumentation amplifiers.
  • Useful for voltage controlled attenuators.

MAT01GH FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the MAT01GH?

The MAT01GH has a maximum operating voltage of 45V.

What package type is the MAT01GH supplied in?

The MAT01GH is supplied in a TO-78-6 Metal Can package.

What is the operating temperature range for the MAT01GH?

The MAT01GH operates from -55°C to 150°C (TJ).

Is the MAT01GH RoHS compliant?

Yes, the MAT01GH is RoHS3 Compliant.

What is the hFE of the MAT01GH transistor?

The MAT01GH has a minimum hFE of 500 and an exceptional hFE of 590 at 10 nA collector current.

What is the VBE match for the MAT01GH?

The VBE match for the MAT01GH is 40 µV typical and 100 µV maximum.
