Mfr Part #:

MAT.500.A

Name: MAT.500.A
Brand: Taoglas Limited
SKU: MAT.500.A

Mfr Name: Taoglas Limited

Description:

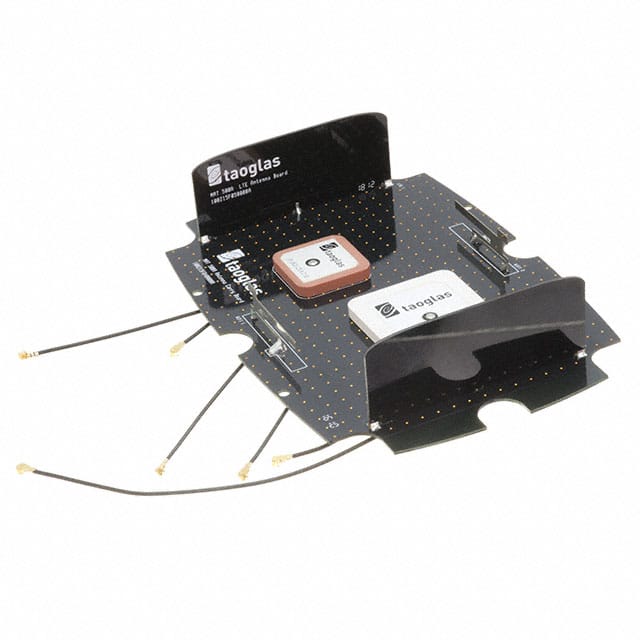

MAT.500.A 6IN1 INTEGRATED ANTENN

Stock on Request

MAT.500.A Description

Short technical summary and product information.

MAT.500.A 6IN1 INTEGRATED ANTENN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Taoglas Limited
Antenna Type	Ceramic Patch
Applications	DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi
Frequency (Center	750.5MHz, 859MHz, 920MHz, 1.575GHz, 1.602GHz, 1.621GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 5.375GHz
Frequency Group	Wide Band
Frequency Range	698MHz ~ 960MHz, 1.574GHz ~ 1.607GHz, 1.615GHz ~ 1.626GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 4.9GHz ~ 5.85GHz
Gain	0.28dBi, 1.7dBi, 1.7dBi, 5.47dBi, 4.9dBi, 5.11dBi, 6.79dBi, 7.06dBi, 6.81dBi, 5.14dBi, 1.35dBi, 4.77dBi
Height (Max)	1.181" (30.00mm)
Mounting Type	Surface Mount
Number of Bands	12
RF Family	Cellular, General ISM, Navigation, WiFi
Termination	U.FL (UMCC), IPEX MHF1
VSWR	2, 2.2, 4
