| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,829 pcs
|
25829 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
848 pcs
|
848 pcs | On Request | 1 | On Request | On Request | 1042+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit | |
| Frequency Range | |
| Halogen Free | |
| Impedance | |
| Insertion Loss | |
| Isolation | |
| Operating Temperature | |
| Operating Voltage | |
| Process | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Test Frequency | |
| Topology |
The MACOM Technology Solutions MASWSS0103TR is a Single Pole Double Throw (SPDT) RF switch designed for CATV systems. It features a 75 Ohm impedance and operates across a frequency range of 5MHz to 1GHz.
This switch offers high isolation, rated at 63dB at 1GHz, and is fabricated using a 0.5 micron GaAs PHEMT process. It is suitable for applications requiring low control voltage, high isolation, small size, and low cost, often replacing mechanical relays.

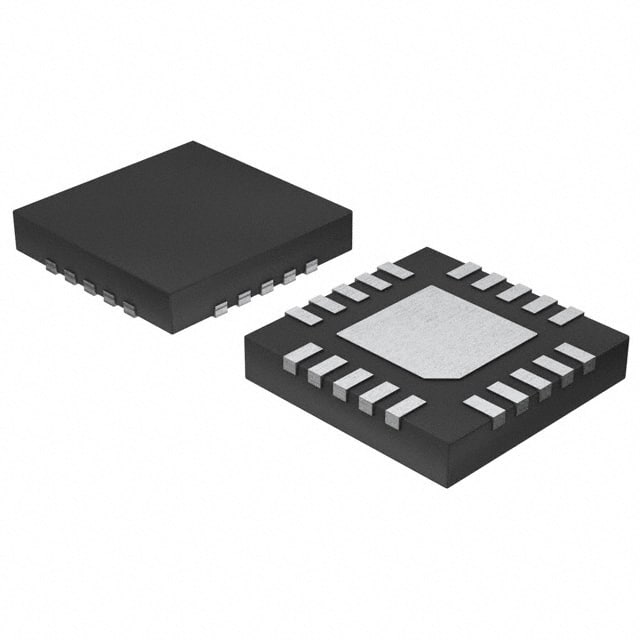

The MASWSS0103TR is housed in a lead-free 4 mm 20-lead PQFN package. It is RoHS compliant and compatible with 260°C reflow processes. The operating temperature range is -40°C to 85°C.
Key electrical specifications include an insertion loss of 1dB at 1GHz and an absolute maximum input power of +32 dBm. The device supports positive voltage control and operates with a supply voltage up to 8.5 volts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance of the MASWSS0103TR is 75 Ohm.
The MASWSS0103TR operates from 5MHz to 1GHz.
The isolation is 63dB at 1GHz.
The insertion loss is 1dB at 1GHz.
The operating temperature range is -40°C to 85°C.
The MASWSS0103TR is supplied in a 20-VFQFN Exposed Pad package.
Yes, the MASWSS0103TR is RoHS3 Compliant.
