| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,829 pcs
|
25829 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit | |
| Frequency Range | |
| Halogen Free | |
| IIP3 | |
| Impedance | |
| Insertion Loss | |
| Isolation | |
| Mounting Type | |
| Operating Temperature | |
| P1dB | |
| Process | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Test Frequency | |
| Voltage |
The MASW-009482-TR3000 from MACOM Technology Solutions is a high-performance, single-pole three-throw (SP3T) switch designed for broadband applications from DC to 4.0 GHz. Fabricated using a 0.5 micron GaAs pHEMT process, this MMIC switch is ideal for CDMA handset switching, offering balanced RF ports for symmetrical performance.
Key electrical specifications include a low insertion loss of 0.55 dB at 1 GHz and high isolation of 27 dB at 1 GHz. It also features a high power capability with P0.1dB of 36 dBm at 1 GHz and an IIP3 of 64 dBm at 2.5 GHz. The switch operates over a voltage range of 0 V to 2.7 V and maintains performance across an operating temperature range of -40°C to 85°C, with a 50 Ohm impedance.

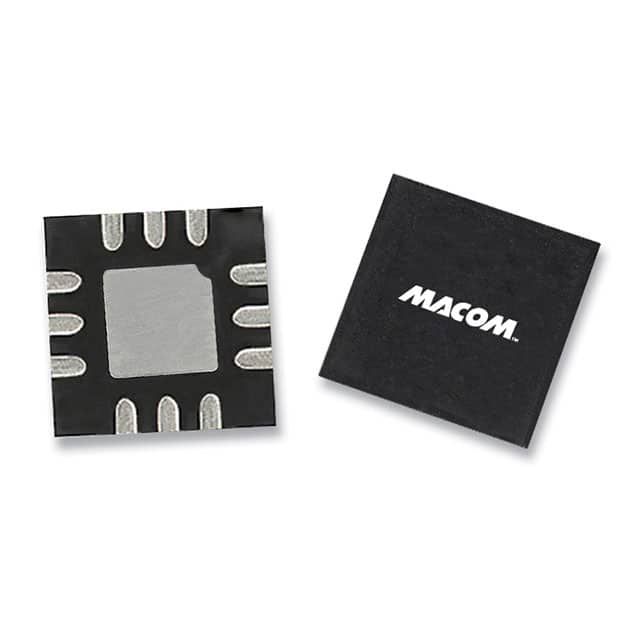

The device is housed in a compact, lead-free 2 mm 12-lead STQFN package with a 0.5 mm lead pitch, suitable for surface mount applications. It is described as Halogen-Free and RoHS Compliant, with an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency range is DC to 4.0 GHz.
The insertion loss is 0.55 dB at 1 GHz.
The isolation is 27 dB at 1 GHz.
The P1dB power rating is 36 dBm at 1 GHz.
The operating temperature range is -40°C to 85°C.
It is in a 12-lead STQFN (2x2 mm) package with an exposed pad, suitable for surface mounting.
The component is RoHS3 Compliant.
