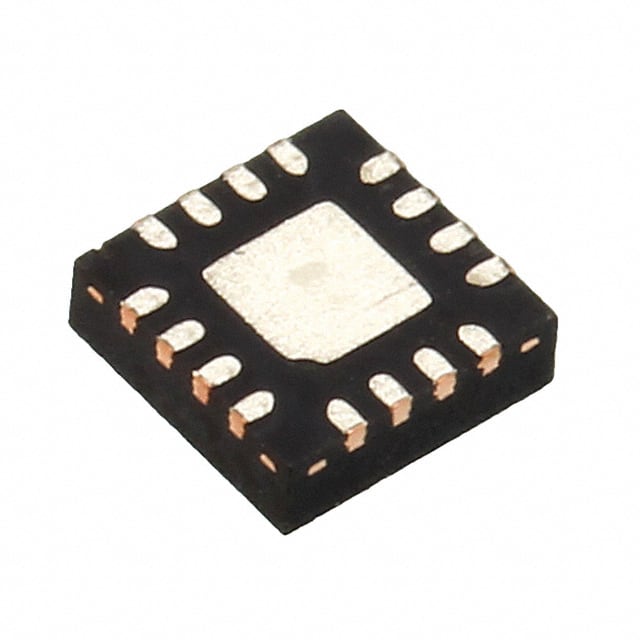

The MACOM Technology Solutions MASW-007813-TR3000 is a single pole four throw (SP4T) high power RF switch fabricated using a 0.5 micron GaAs pHEMT process. It operates from DC up to 3 GHz and is suitable for applications requiring high power at low control voltage.
Key electrical specifications include a low insertion loss of 0.7 dB at 1 GHz and high isolation of 25 dB at 2 GHz. It also features low harmonics (< -66 dBc at +34 dBm & 1 GHz) and a low operating voltage of 2.5 V. The switch has a typical return loss of 20 dB across its frequency range and an impedance of 50 Ohms.
This RF switch is housed in a low-profile, lead-free 3 mm PQFN 16-lead package, making it ideal for space-constrained designs. It is RoHS compliant and operates within a temperature range of -40°C to 85°C. Typical applications include GSM and DCS handset systems.
The MASW-007813-TR3000 is designed for reliability and performance, featuring full passivation. The exposed pad on the package bottom must be connected to RF and DC ground for optimal performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MASW-007813-TR3000 operates from DC up to 3 GHz.
The insertion loss is 0.7 dB at 1 GHz.
The isolation is 33 dB at 2 GHz.
The MASW-007813-TR3000 is supplied in a 16-PQFN (3x3) package.
The operating temperature range is -40°C to 85°C.
Yes, the MASW-007813-TR3000 is RoHS3 Compliant.
The moisture sensitivity level is 1 Unlimited.
