The MACOM MASW-000834-13560T is a broadband SPDT (Single Pole Double Throw) PIN diode T/R switch operating from 50 MHz to 6 GHz. This high-linearity switch is suitable for applications including WiMAX and WiFi, as well as Aerospace & Defense.
Key electrical specifications include a typical insertion loss of 0.33 dB at 2010 MHz and 0.38 dB at 3.5 GHz. It provides high isolation, with a typical value of 44 dB at 2010 MHz and 36 dB at 3.5 GHz. The device can handle high TX RF input power, rated at 50 W CW at 2010 MHz and a peak power of over 1000 W. The typical IIP3 is 65 dBm at 2010 MHz.
This switch operates with a 5V supply and has an impedance of 50 Ohms. It is designed for operation within a temperature range of -40°C to 85°C.

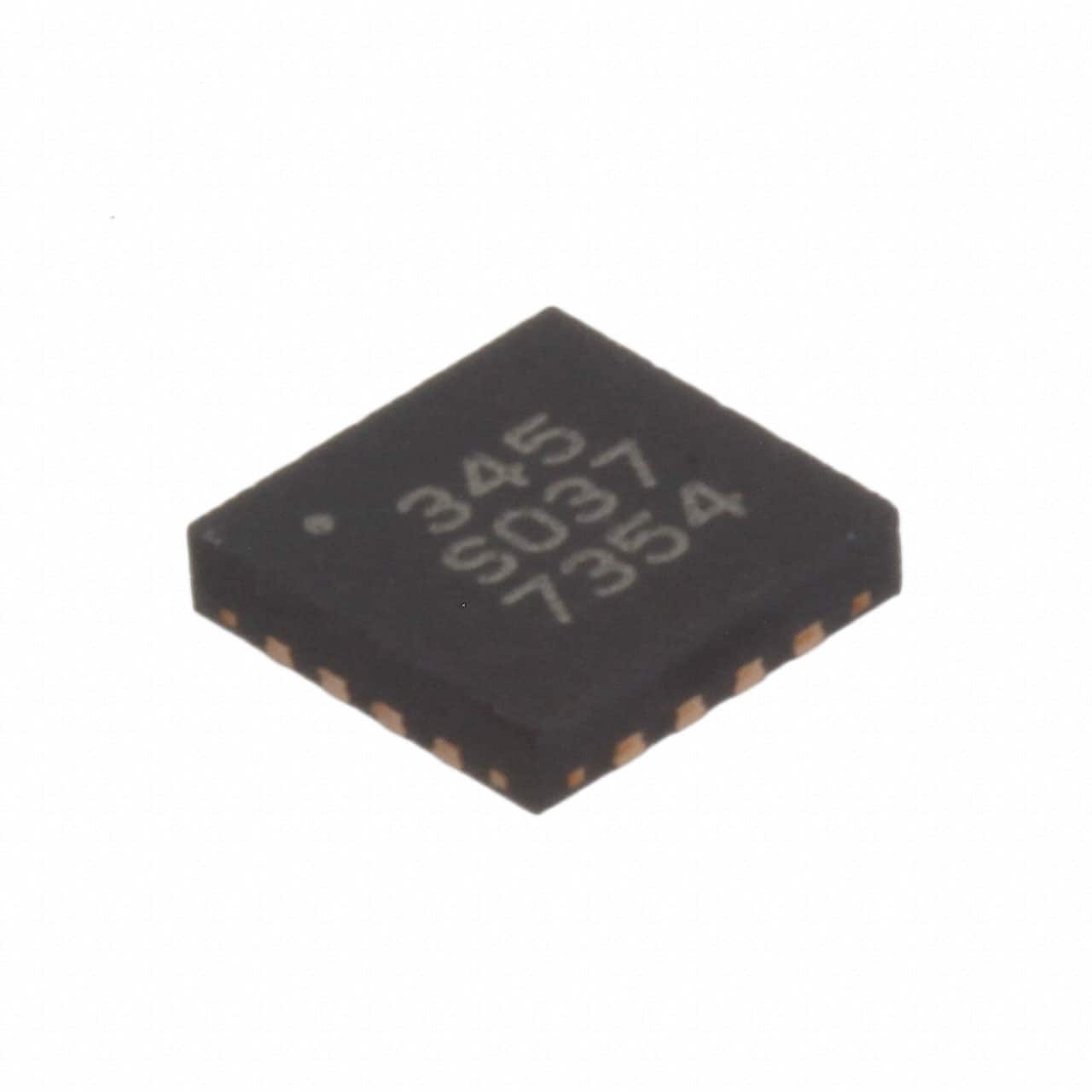

The MASW-000834-13560T is provided in a compact, surface-mount 16-PQFN (4x4) package with an exposed pad for enhanced thermal and RF grounding. It is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 50 MHz to 6 GHz.
The typical insertion loss at 3.5 GHz is 0.38 dB.
The typical isolation at 3.5 GHz is 36 dB.
The device handles 50 W CW RF input power at 2010 MHz.
The operating temperature range is -40°C to 85°C.
It is supplied in a 16-PQFN (4x4) surface-mount package with an exposed pad.
