| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 1049 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diameter | |
| Driver Circuitry | |
| Frequency | |
| Frequency Tolerance | |
| Hand Soldering Condition | |
| Height | |
| Housing Material | |
| Input Type | |
| Lead Pin Material | |
| Lead Style | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| Sound Pressure Level (SPL) | |
| Storage Temperature Range | |
| Technology | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Range | |
| Wave Soldering Condition | |
| Weight |

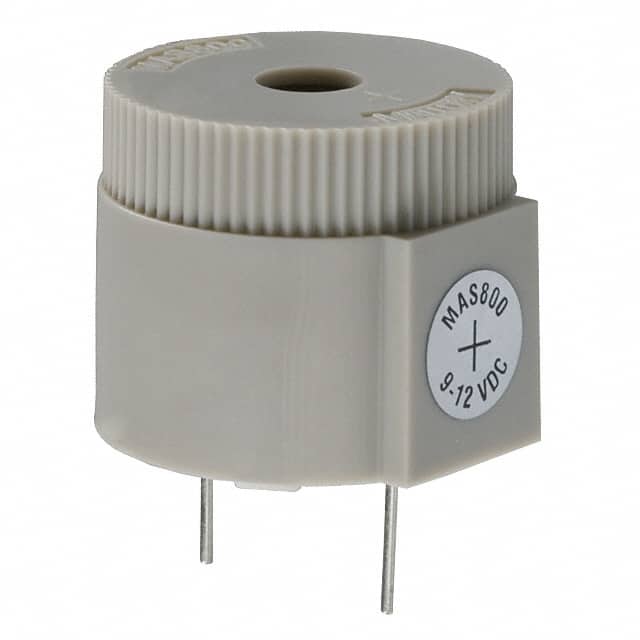

The MAS800Q is a through-hole piezo buzzer from Mallory Sonalert Products. It operates at 12V nominal (9-12V range) and produces a 2.7kHz single tone with a sound pressure level of 103dB at 10cm. The buzzer draws a maximum current of 50mA at 12V. It features an internally driven driver circuitry and a top port location. The housing is made of ABS 777D UL94HB plastic (gray) with 100% pure tin plated brass lead pins. The diameter is 26mm and height is 21.9mm. Operating temperature range is -20°C to 90°C. Wave soldering condition is 245±5°C for 3±0.5 seconds; hand soldering is 350±20°C within 5 seconds. Weight is 10 grams. RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.71 | $8.71 |
| 10+ | $6.70 | $6.70 |
| 25+ | $6.06 | $6.06 |
| 50+ | $5.62 | $5.62 |
| 100+ | $5.22 | $5.22 |
| 300+ | $4.67 | $4.67 |
| 500+ | $4.43 | $4.43 |
| 1,000+ | $4.29 | $4.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAS800Q operates at 9-12V DC, with a nominal voltage of 12V.
The buzzer produces a single tone at 2.7kHz with a tolerance of ±500Hz.
The sound pressure level is 103dB when measured at 10cm with 12V applied.
It uses an internally driven indicator driver circuitry, meaning no external driver is required.
It is a through-hole component with PC pin terminals.
The operating temperature range is -20°C to 90°C.
Yes, it is RoHS3 compliant as verified by the datasheet.
