| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

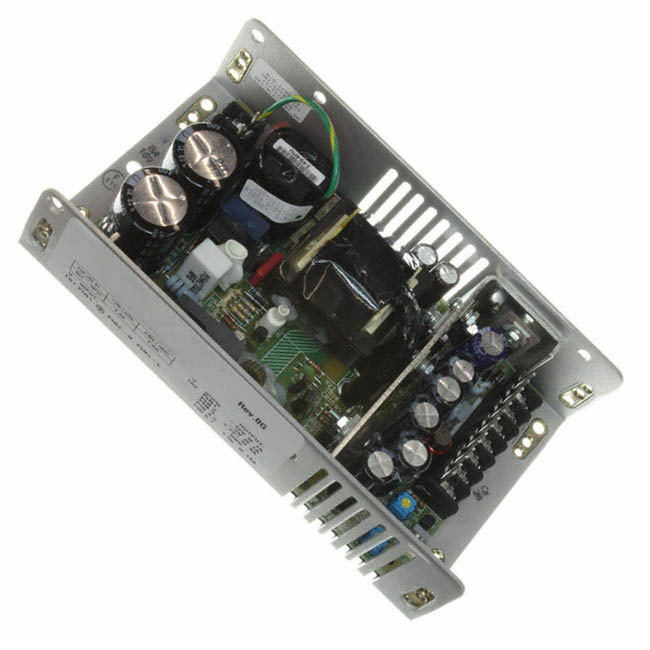

The Bel Power Solutions MAP80 Series, including the MAP80-4004G model, provides reliable DC power for industrial systems requiring high peak current capabilities. This AC/DC converter delivers 80W of power with a wide input voltage range of 90 to 264 VAC.
The MAP80-4004G features an open frame construction and chassis mount for flexible integration. It offers multiple output voltages, including +5V, +24V, +15V, and -15V, making it suitable for diverse applications. The unit operates within a temperature range of 0°C to 70°C with derating and boasts an efficiency of 80%.
Designed for industrial systems, the MAP80 series complies with EMC product standards EN 61204-3, EN 55032, EN 61000-3-2, and EN 61000-3-3. It is also safety approved to IEC/EN 62368-1 and carries CE marking. The power supply includes features like adjustable output and a TTL compatible power fail signal, contributing to its versatility in ITE (Commercial) applications.
The MAP80-4004G provides four outputs: 5V DC, 24V DC, and +/-15V DC.
The input voltage range is 90 to 264 VAC.
The operating temperature range is 0°C to 70°C with derating.
The efficiency is 80%.
The MTBF is greater than 175,000 hours.
It complies with IEC/EN 62368-1.
The mounting type is chassis mount.
