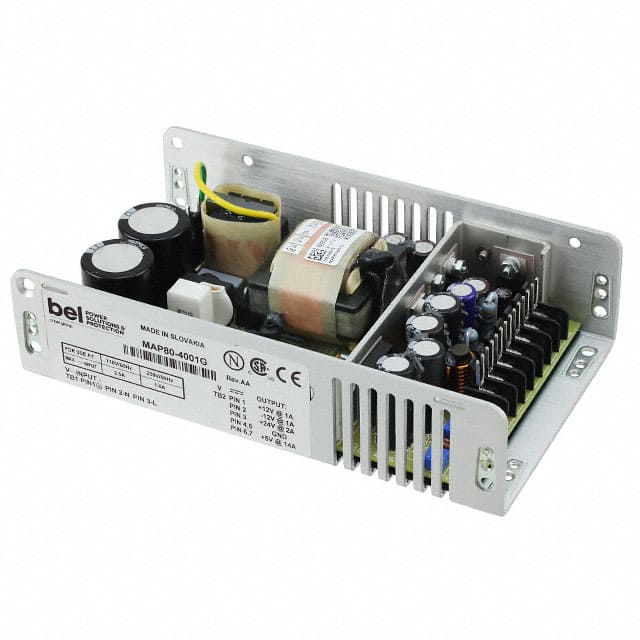

The Bel Power Solutions MAP80-4001G is a chassis mount AC-DC converter designed for industrial systems requiring reliable DC power. It offers a total power output of 90W and accepts a wide input voltage range of 90 to 264 VAC.
This converter provides four distinct output voltages: +5V at 16A, +24V at 3.5A, -12V at 1A, and +12V at 1A. It features adjustable output capabilities and a universal input, making it versatile for various applications. The unit operates with convection cooling and has an efficiency rating of 80%.
Designed with integration flexibility in mind, the MAP80-4001G utilizes a U-channel chassis and includes metric and SAE mounting inserts. It also offers dual-mode connectors for traditional terminal block connections or Molex mating. The operating temperature range is 0°C to 70°C with derating.
Compliance includes CE marking and adherence to EMC standards such as EN 61204-3, EN 55032, EN 61000-3-2, and EN 61000-3-3. Safety is approved to IEC/EN 62368-1. The product is RoHS3 compliant.
The input voltage range is 90-264 VAC.
0°C to 70°C with derating.
U-Chassis package with chassis mount.
Four outputs: +5V, +24V, -12V, and +12V.
80W total with 80% efficiency.
Convection cooling.
IEC/EN 62368-1.
