(MAP80-4000) The Bel Power Solutions MAP80-4000 is an 80W AC/DC converter featuring four outputs: +5V, +12V, -5V, and -12V. It offers adjustable output and universal input.
Mfr Part #:

(MAP80-4000)

Mfr Name: Bel Power Solutions
Bel Power Solutions
The Bel Power Solutions MAP80-4000 is an 80W AC/DC converter featuring four outputs: +5V, +12V, -5V, and -12V. It offers adjustable output and universal input.
Stock on Request

(MAP80-4000) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Input Voltage
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Type
Voltage
Width
View Similar Products (0)

(MAP80-4000) Description

Short technical summary and product information.

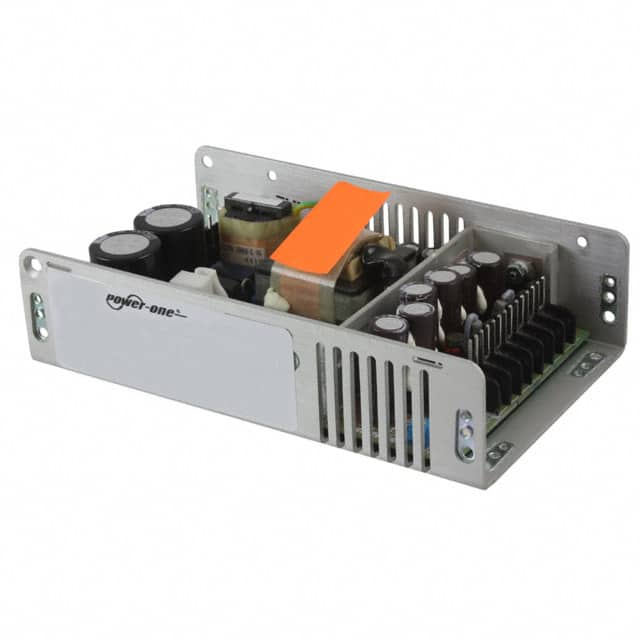

The Bel Power Solutions MAP80-4000 is an 80W open frame AC/DC converter designed for ITE (Commercial) applications. It provides four outputs with adjustable voltage ranges and tight regulation.



Key electrical specifications include a maximum output power of 80W and an efficiency of 80%. The converter supports a wide-range input of 110/220 VAC. It features multiple outputs: +5V at 14A, +12V at 4A, -5V at 1A, and -12V at 1A, with corresponding peak current capabilities.



This unit is designed for chassis mounting and operates within a temperature range of 0°C to 70°C with derating. It meets input transient and ESD compliance to EN61000-4-2/-3/-4 and EMI limits per EN55022 Class B. The converter also includes a TTL compatible Power Fail Signal and is CE marked.

(MAP80-4000) Quick Information

Product Type: AC DC Converter
Series: MAP80
Canonical Name: Bel Power Solutions MAP80-4000 AC/DC Converter
Subcategory: AC DC Converters

(MAP80-4000) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

(MAP80-4000) Features

  • 80W maximum output power.
  • Four outputs: +5V, +12V, -5V, -12V.
  • Universal AC input (110/220 VAC).
  • Open frame, chassis mount design.
  • Meets EN55022 Class B EMI standards.

(MAP80-4000) Applications

  • Ideal for commercial ITE (Information Technology Equipment).
  • Used in industrial control systems requiring multiple voltages.
  • Suitable for telecom and networking equipment.
  • Supports mixed analog and digital power rails.

(MAP80-4000) FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the MAP80-4000?

0°C to 70°C with derating.

What input voltage does the MAP80-4000 accept?

110/220 VAC.

What are the output voltages of the MAP80-4000?

+5V, +12V, -5V, and -12V.

What is the form factor and mounting style?

Open frame with chassis mount.

What is the efficiency of the MAP80-4000?

80%.

What EMI compliance does the MAP80-4000 meet?

EN55022 Class B.

Does the MAP80-4000 include a power fail signal?

Yes, a TTL-compatible power fail signal.
