| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

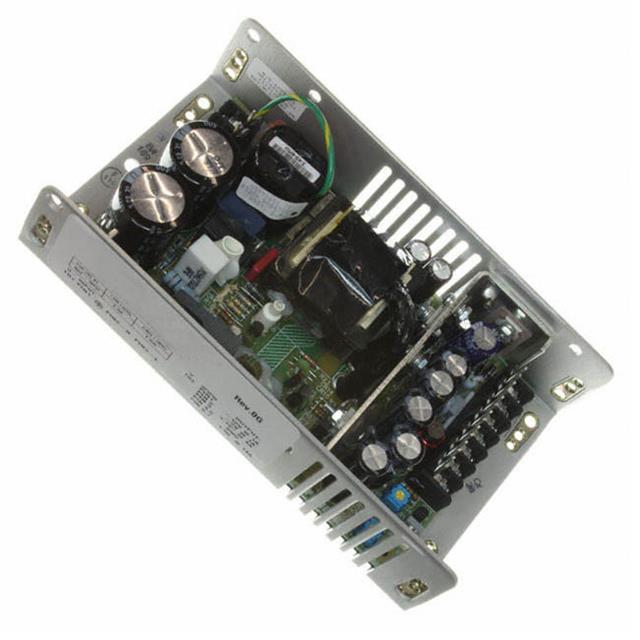

The Bel Power Solutions MAP80-1024G is an 80W open frame AC/DC converter designed for ITE (Commercial) applications. It provides a regulated 24V output with an adjustable range of 23.0V to 29.0V. The converter accepts a wide input voltage range of 90 to 264 VAC, making it suitable for global use.
Key electrical specifications include an output current of 3.8A, a peak output current of 4.6A, and an efficiency of 80%. It offers line regulation of 0.1% and load regulation of 0.5%, ensuring stable power delivery. The isolation voltage is rated at 2.6 kV.
Designed for easy integration, the MAP80-1024G features a chassis mount type and measures 182.9mm in length, 106.7mm in width, and 45.7mm in height. The operating temperature range is 0°C to 70°C with derating. This series complies with EMC standards and is CE marked.
90-264 VAC.
24V.
Yes, from 23.0V to 29.0V.
0°C to 70°C with derating.
Chassis Mount.
182.9mm x 106.7mm x 45.7mm.
80%.
