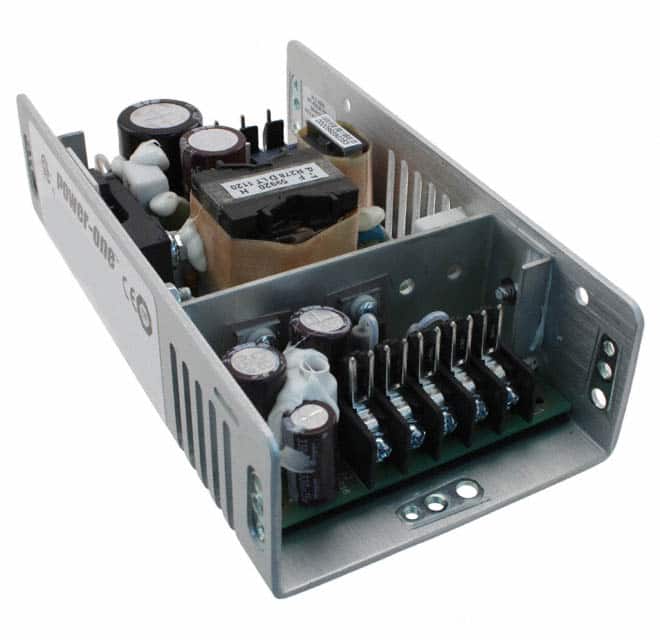

The Bel Power Solutions MAP55-1012G is an open frame AC DC converter designed for industrial systems. It provides a reliable, tightly regulated 12V DC output with a maximum current of 5A and a power rating of 55W.
This series features a wide range input for 110/220 VAC applications, accepting 90 to 264 VAC. The compact footprint measures 6.0 x 3.27 x 1.6 inches (152.4 x 83.1 x 40.6 mm). Key electrical specifications include 73% efficiency, 0.2% line regulation, and ±1% load regulation. The operating temperature range is 0°C to 70°C with derating.
Designed for flexibility, the MAP55 series includes metric and SAE mounting inserts. It meets EMC standards EN 61204-3, EN 55032, EN 61000-3-2, and EN 61000-3-3. The unit is CE marked to the Low Voltage Directive and is RoHS compliant.
With a Mean Time Between Failures (MTBF) greater than 225,000 hours, this power supply is suitable for ITE (Commercial) applications. It offers adjustable output voltage and universal input, making it a versatile choice for various industrial power needs.
The input voltage range is 90-264 VAC.
The nominal output voltage is 12V with a current of 5A, providing 55W of power.
The operating temperature range is 0°C to 70°C with derating.
The package type is open frame, intended for chassis mount.
Typical efficiency is 73%.
The input-to-output isolation voltage is 2.6 kV.
The dimensions are 152.4mm x 83.1mm x 40.6mm (6.00" x 3.27" x 1.60").
