| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

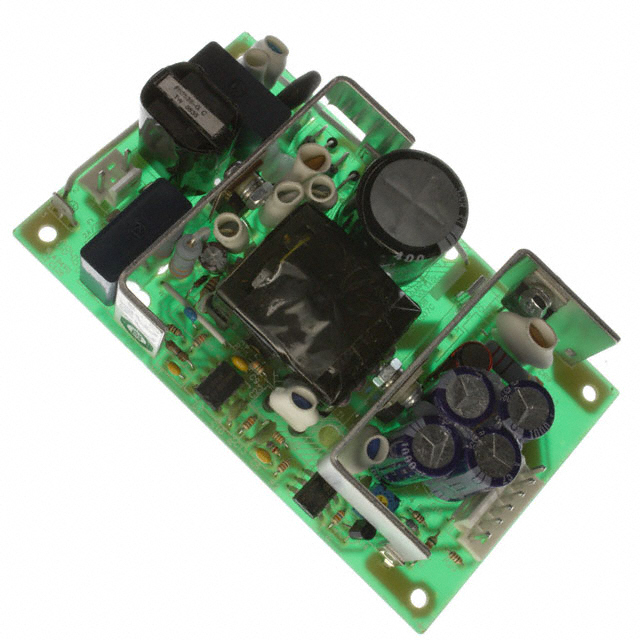

The MAP42-1012 is an open frame AC/DC power converter manufactured by Bel Power Solutions. It provides a fixed 12V output with a maximum current of 3.4A and a power rating of 40W. The device is designed for industrial and commercial applications requiring reliable power supplies with high efficiency. It features adjustable output voltage, remote sensing capability, and universal input voltage range from 90V to 264VAC. The converter complies with EMC standards EN 61204-3, EN 55032, EN 61000-3-2, and EN 61000-3-3, and is RoHS3 compliant. Its dimensions are 127mm in length, 76.2mm in width, and 31.8mm in height, with a chassis mounting type. The device operates within a temperature range of 0°C to 70°C with derating. It includes an isolation voltage of 2.6kV and requires a minimum load for proper operation.
The input voltage range is 90V to 264VAC.
The maximum output current is 3.4A.
Yes, it is RoHS3 compliant.
The dimensions are 127mm x 76.2mm x 31.8mm.
