| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Width |

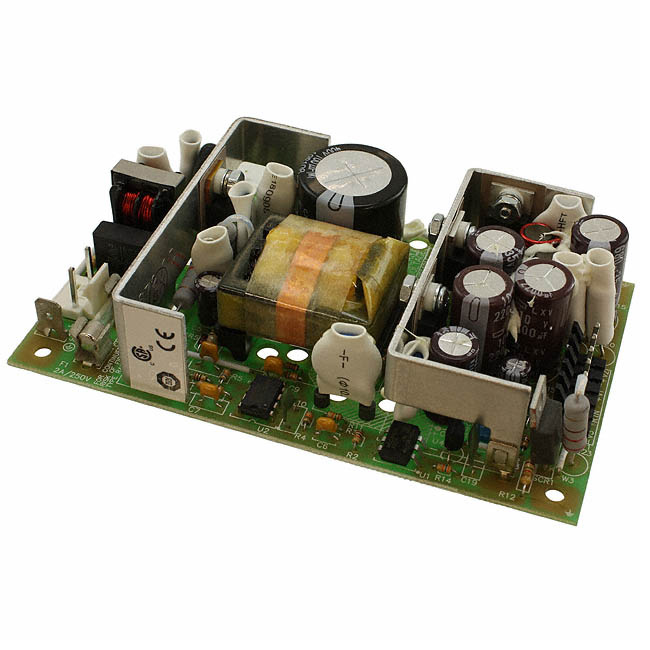

The Bel Power Solutions MAP30-1005 is an AC/DC converter designed for various applications, including ITE (Commercial). It delivers 30W of power with a single 5VDC output and can accept an input voltage range of 85-264VAC.
This converter features an open frame construction and is designed for chassis mounting. Key specifications include an output current of 8A, an efficiency of 70%, and an operating temperature range of 0°C to 70°C with derating. It also includes features such as adjustable output, remote sense, and universal input.
The dimensions of the unit are 76.2mm x 127.0mm x 29.5mm. It has a voltage rating of 2.6 kV and is CE approved. The product is listed as RoHS3 Compliant, with an MSL of 1 Unlimited, and REACH Unaffected.
The MAP30-1005 provides a 5VDC output with a current rating of 8A.
The input voltage range for the MAP30-1005 is 85-264VAC.
The MAP30-1005 has a power rating of 30W.
The operating temperature range is 0°C to 70°C, with derating.
The MAP30-1005 is a chassis mount converter.
The MAP30-1005 is RoHS3 Compliant.
