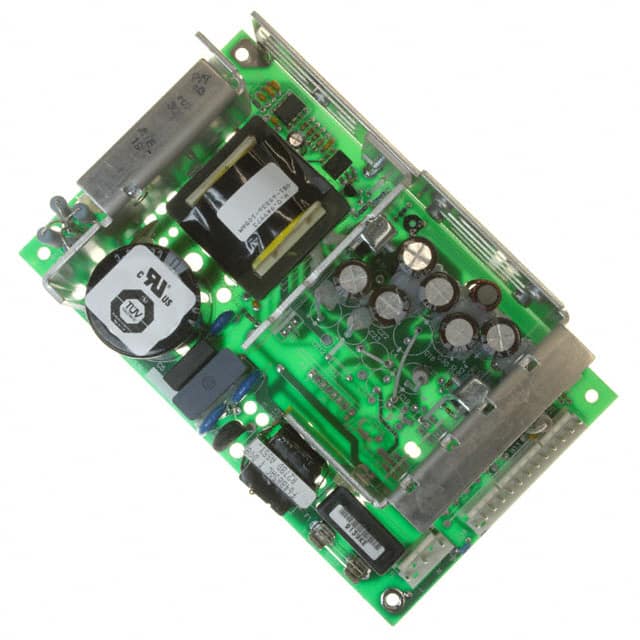

The MAP140-1024 is a high-density open-frame AC/DC power converter manufactured by Bel Power Solutions. Rated for 80 watts of continuous output power, it delivers a nominal 24-volt DC output with an adjustable range from 22.8 to 29.2 volts. The unit supports a universal AC input ranging from 85 to 264 VAC at 47 to 63 Hz, making it suitable for global deployment. Key electrical characteristics include 0.1 percent line regulation, 0.5 percent load regulation, and less than 1 percent peak-to-peak ripple and noise. The converter features remote sensing, overvoltage protection, and holds up for 16 milliseconds during input power loss. Constructed in an industry-standard footprint measuring 177.8 by 109.2 by 45.7 millimeters, it utilizes a chassis mount configuration and operates reliably between 0 and 70 degrees Celsius with derating. Certified to CB, cCSAus, and CE standards, this unit meets rigorous EMC requirements including EN 61204-3 and EN 55032. It is optimized for information technology equipment and commercial applications requiring dependable off-board power delivery.
The unit accepts a universal AC input from 85 to 264 VAC at 47 to 63 Hz.
It delivers 80 watts continuously, with a peak capacity of 140 watts under forced air cooling conditions.
Yes, built-in remote sense capability is included to compensate for cable voltage drops.
The chassis measures 177.8 mm in length, 109.2 mm in width, and 45.7 mm in height.
Yes, the unit is RoHS3 compliant and bears the CE marking.
The converter operates reliably from 0°C to 70°C with appropriate derating applied.
