| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

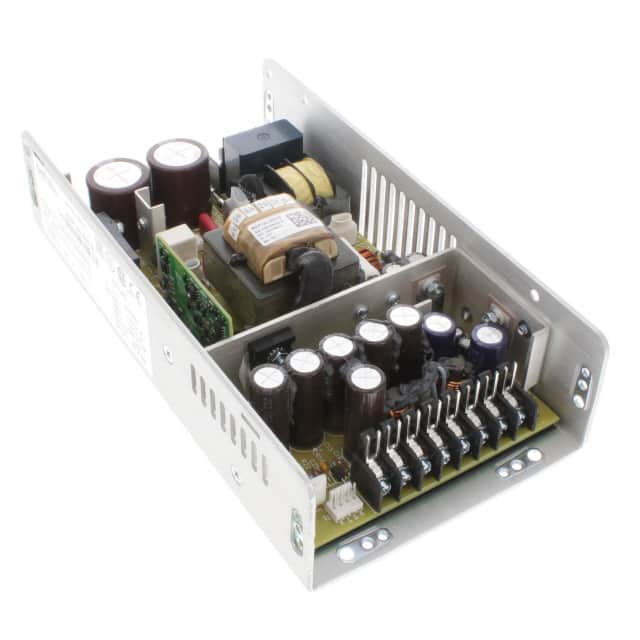

The Bel Power Solutions MAP130-4001G is an open frame AC/DC converter designed for ITE (Commercial) applications. It delivers a total power of 130W and features four regulated outputs: 5V, 24V, -12V, and +12V.
Key electrical specifications include a universal input voltage range of 90-132 VAC and 175-264 VAC, an efficiency of 80%, and an isolation voltage of 2.6 kV. The converter supports adjustable output for the 5V and 24V rails, with fixed outputs for the +/-12V rails. It also includes features like remote sense and a power fail signal.
This unit is housed in a compact U-channel chassis measuring 8.50 x 4.50 x 2.00 inches (215.9 x 114.3 x 50.8 mm). It is designed for chassis mounting and operates within a temperature range of 0°C to 70°C with derating. The MAP130-4001G complies with CE, CB, and cCSAus approval standards.
The MAP130-4001G has four outputs: +5V, +24V, -12V, and +12V.
The total power output for the MAP130-4001G is 130W.
The input voltage range is 90-132 VAC and 175-264 VAC.
The operating temperature range is 0°C to 70°C, with derating.
The dimensions are 8.50" L x 4.50" W x 2.00" H (215.9mm x 114.3mm x 50.8mm).
Yes, the MAP130-4001G is RoHS3 Compliant.
