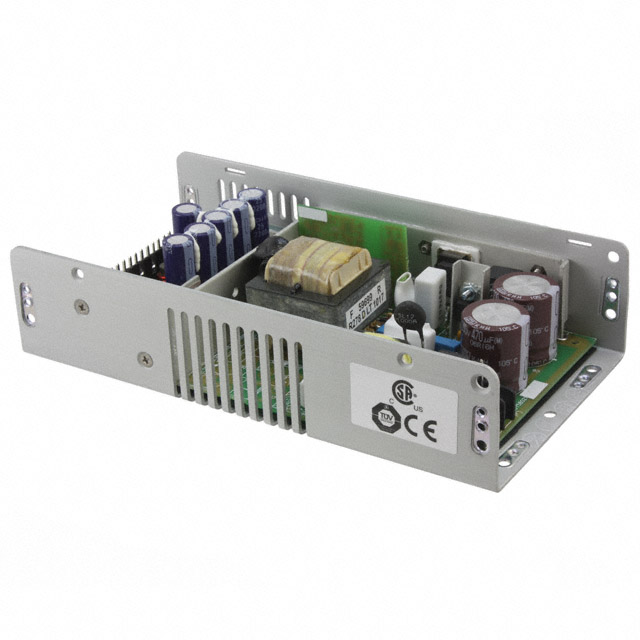

The Bel Power Solutions MAP130-4000 is an open-frame AC/DC converter designed for industrial environments. It provides a total power of 130W and features four regulated outputs: +5V, +12V, -12V, and -5V. The converter accepts a universal AC input voltage range of 90-132 VAC and 175-264 VAC.
Key electrical specifications include a continuous output current of 20A for the 5V output and 5A for the 12V output, with peak currents of 30A and 10A respectively. The -5V and -12V outputs each provide 1A continuous and peak current. The unit boasts 80% efficiency and offers features such as adjustable output, remote sense, and overvoltage/overtemperature protection. It operates within a temperature range of 0°C to 70°C with derating.
Mechanically, the MAP130-4000 is housed in a U-channel chassis measuring 8.50 x 4.50 x 2.00 inches (215.9 x 114.3 x 50.8 mm) and is designed for chassis mounting. It meets various EMC standards, including EN 61204-3, EN 55032, and EN 61000-3-3, and carries approvals from CB, cCSAus, and CE.
This power supply is suitable for ITE (Commercial) applications and offers a high MTBF of over 100,000 hours. It is RoHS3 compliant and has an MSL rating of 1.
The input voltage range is 90-132 VAC or 175-264 VAC.
The mounting type is chassis mount and the packaging is bulk.
The operating temperature range is 0°C to 70°C with derating.
Outputs: +5V at 20A (30A peak), +12V at 5A (10A peak), -5V at 1A, -12V at 1A.
The efficiency is 80%.
The isolation voltage is 2.6 kV.
It has CB, cCSAus, and CE approvals.
